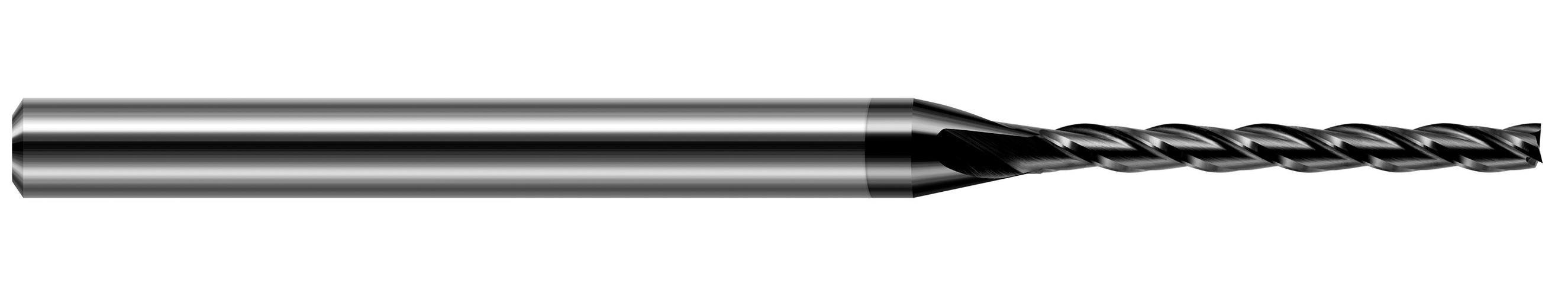

.031 CARB 10x LG FL DIAMOND END MILL

.031 CARB 10x LG FL DIAMOND END MILL

HATL951331-C4 951331-C4
92.20 / EA
http://schema.org/OutOfStock
.031 CARB 10x LG FL DIAMOND END MILL
  • Type: Center Cut Long Length
  • Cutter Diameter Decimal Inch: 0.031
  • Cutter Diameter Fractional Inch: 1/32
  • Cutter Diameter Metric: 0.787
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.3125
  • Length of Cut Fractional Inch: 5/16
  • Length of Cut Metric: 7.938
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: Amorphous Diamond
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Helical
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Designed for deep cavities and engineered to deliver excellence when milling deep pockets
  • Long flute and long length design for deep cavities
  • Mills deep pockets
  • Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Profile Square
