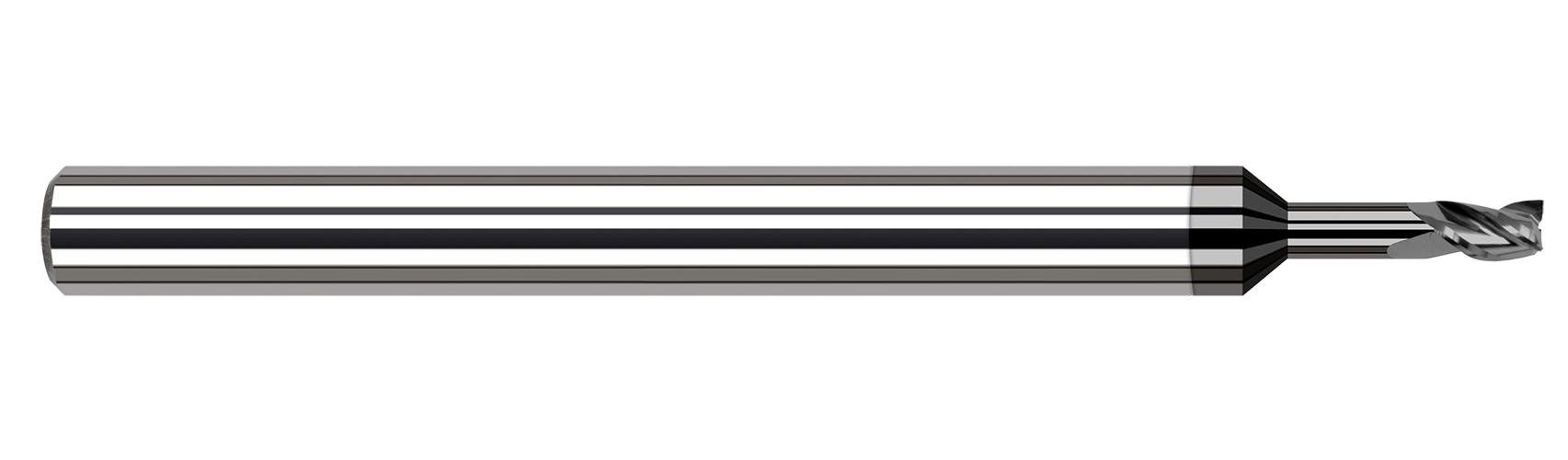

.040 CARB STB FL 4x RCH DIAMOND END MILL
.040 CARB STB FL 4x RCH DIAMOND END MILL
HATL945540-C4
945540-C4
63.28
/ EA
http://schema.org/OutOfStock
/Product/HATL945540-C4
- Type: Center Cut Stub Length
- Cutter Diameter Decimal Inch: 0.04
- Cutter Diameter Metric: 1.016
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.06
- Length of Cut Metric: 1.524
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: Amorphous Diamond
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Item Features
- Long length design for deep cavities, up to 10 in overall length
- Stub flute for maximum rigidity
- Reduced neck diameter to avoid heeling
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.1600 in
- Reach Multiple (4x)
- Profile Square
