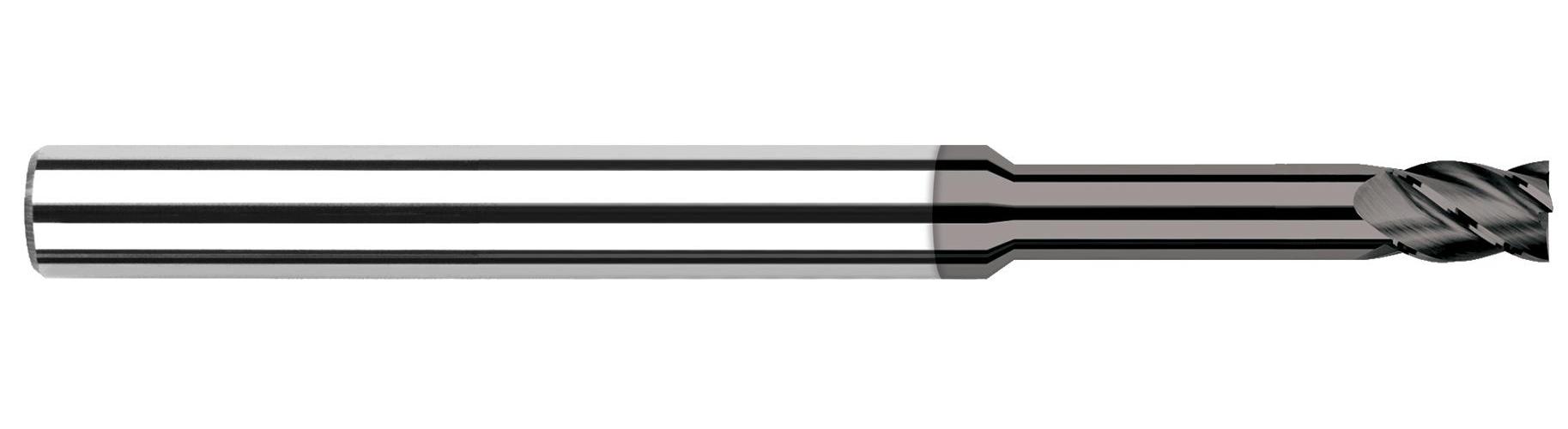

.015 CVD STB FL 5x RCH END MILL
.015 CVD STB FL 5x RCH END MILL
HATL943015
943015
179.20
/ EA
http://schema.org/OutOfStock
/Product/HATL943015
- Type: Center Cut Stub Length Long Reach
- Cutter Diameter Decimal Inch: 0.015
- Cutter Diameter Fractional Inch: 1/64
- Cutter Diameter Metric: 0.381
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.023
- Length of Cut Metric: 0.584
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: C5, CVD Diamond
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.0137in
- Overall Reach: 0.078in
- Reach Multiple: 5X
- Application
- Item Features
- Standards
Ideal for machining graphite and composites, green carbide and green ceramics
- True crystalline CVD diamond on carbide substrate
- Maximum abrasion resistance increases tool life
- Reduced neck for clearance and maximum rigidity
- Applicable Materials are Composites, Graphite
- Overall Reach 0.0780 in (5/64)
- Profile Square
PROP65: This product contains chemicals known to the State of California to cause cancer
