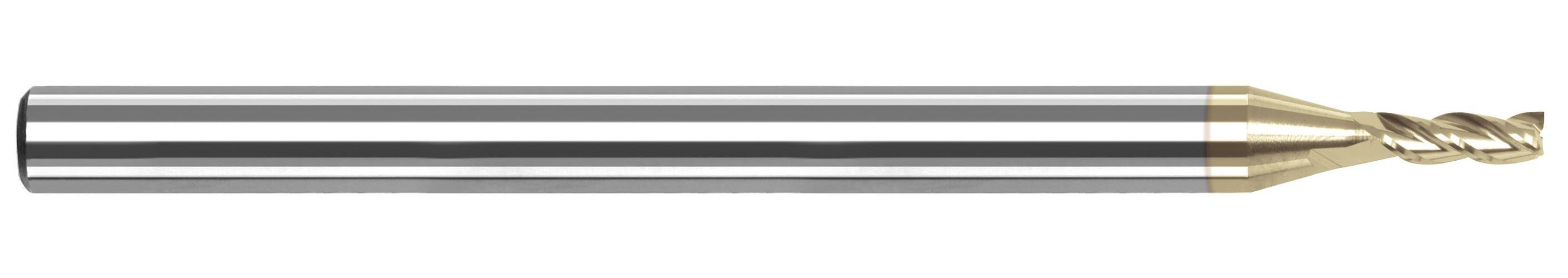

.031 SQ 3FL V-HELIX NF 3xLOC END MILL

.031 SQ 3FL V-HELIX NF 3xLOC END MILL

HATL942231-C7 942231-C7
43.91 / EA
http://schema.org/OutOfStock
.031 SQ 3FL V-HELIX NF 3xLOC END MILL
  • Type: Center Cut Variable Helix
  • Cutter Diameter Decimal Inch: 0.031
  • Cutter Diameter Fractional Inch: 1/32
  • Cutter Diameter Metric: 0.787
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.09375
  • Length of Cut Fractional Inch: 3/32
  • Length of Cut Metric: 2.381
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: ZrN
  • Helix Angle: 42 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Helical
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Optimized for aluminum and aluminum alloys with excellent performance in copper, brass and bronze alloys, Harvey Tool
  • Variable helix design reduces chatter and harmonics and increases material removal rates
  • H6 shank tolerance for high precision tool holders
  • Profile Square
