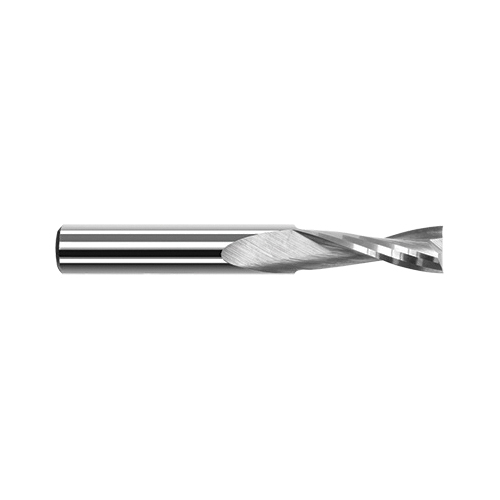

.020 2FL CARB 1/8SHK .200LOC END MILL

.020 2FL CARB 1/8SHK .200LOC END MILL

HATL938920 938920
72.80 / EA
http://schema.org/OutOfStock
.020 2FL CARB 1/8SHK .200LOC END MILL
  • Type: Center Cut Imperial Upcut
  • Cutter Diameter Decimal Inch: 0.02
  • Cutter Diameter Metric: 0.508
  • Number of Flutes: 2
  • Length of Cut Decimal Inch: 0.2
  • Length of Cut Metric: 5.08
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Country of Origin: US
  • Flute Type: Slow Spiral
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Plunging and Ramping Applications
  • 2 flute design improves bottom finish and accuracy
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • Slower helix reduces lifting forces, making design preferable for fiber reinforced applications and vacuum table setups
  • 2 flute design improves rigidity for better accuracy, less deflection and longer tool life
  • Center cutting design improves plunging and ramping
