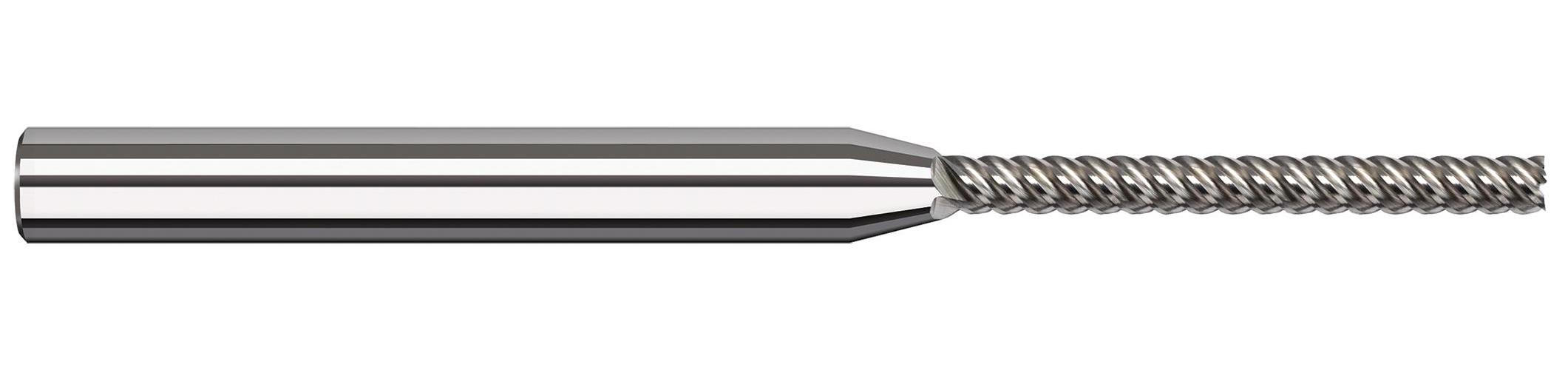

.031 HI-HELIX NF FINISHER END MILL
.031 HI-HELIX NF FINISHER END MILL
HATL917631
917631
73.40
/ EA
http://schema.org/OutOfStock
/Product/HATL917631
- Type: Center Cut Variable Helix
- Cutter Diameter Decimal Inch: 0.031
- Cutter Diameter Fractional Inch: 1/32
- Cutter Diameter Metric: 0.787
- Number of Flutes: 5
- Length of Cut Decimal Inch: 0.312, 0.3125
- Length of Cut Fractional Inch: 5/16
- Length of Cut Metric: 7.925, 7.938
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: UNCOATED
- Helix Angle: 50 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Item Features
- Standards
- Variable helix design (approx. 50) reduces chatter and harmonics, improving finish
- High helix for effective chip evacuation
- H6 shank tolerance for high precision tool holders
- End cutting (not center cutting)
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Profile Square
