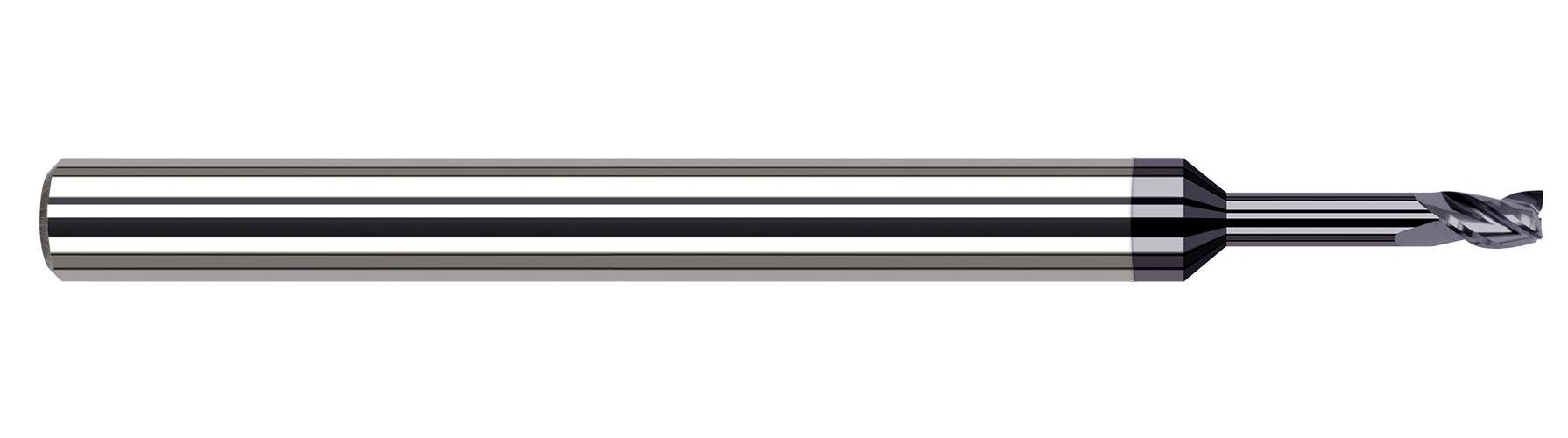

.020 SQ V-HELIX FM 5x RCH END MILL

.020 SQ V-HELIX FM 5x RCH END MILL

HATL915020-C3 915020-C3
70.60 / EA
http://schema.org/OutOfStock
.020 SQ V-HELIX FM 5x RCH END MILL
  • Type: Center Cut Stub Length Variable Helix
  • Cutter Diameter Decimal Inch: 0.02
  • Cutter Diameter Metric: 0.508
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.03
  • Length of Cut Metric: 0.762
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: AlTiN, C3
  • Helix Angle: 38 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Helical
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.0192in
  • Overall Reach: 0.1in
  • Reach Multiple: 5X
QTY
Add to List
  • Application
  • Item Features
  • Standards
Optimized for free machining varieties of carbon steels and stainless steels
  • Reduced neck diameter to avoid heeling
  • Variable helix design (approx. 38) reduces chatter and harmonics and increases material removal rates
  • AlTiN coated for improved lubricity and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Applicable Materials are Cast Iron, Steel, Stainless Steel
  • Overall Reach 0.1000 in
  • Reach Multiple (5x)
  • Profile Square
