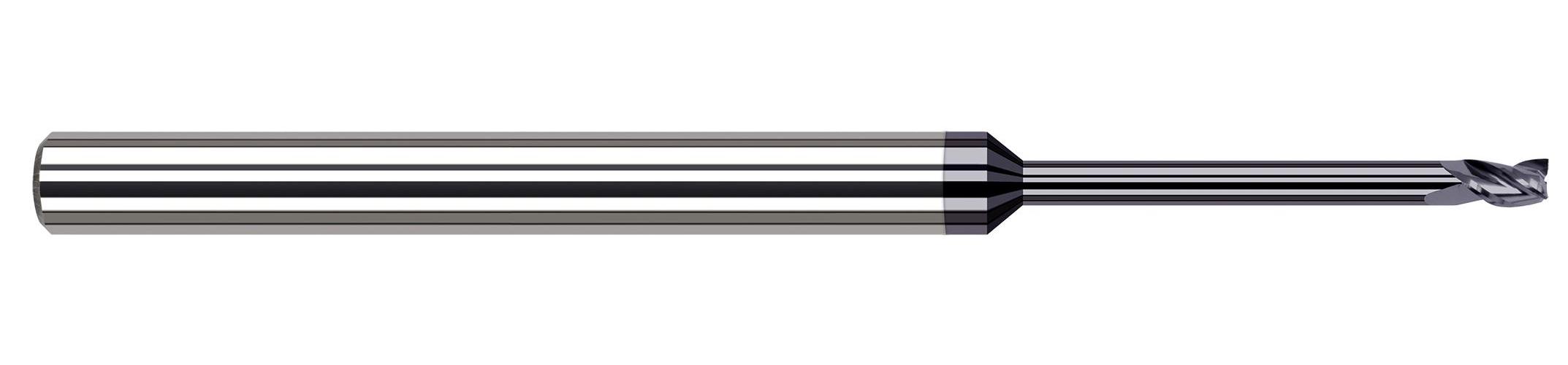

.031 SQ V-HELIX FM 10x RCH END MILL
.031 SQ V-HELIX FM 10x RCH END MILL
HATL909531-C3
909531-C3
70.10
/ EA
http://schema.org/OutOfStock
/Product/HATL909531-C3
- Type: Center Cut Stub Length Variable Helix
- Cutter Diameter Decimal Inch: 0.031
- Cutter Diameter Fractional Inch: 1/32
- Cutter Diameter Metric: 0.787
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.046875, 0.047
- Length of Cut Fractional Inch: 3/64
- Length of Cut Metric: 1.191, 1.194
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN, C3
- Helix Angle: 38 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.03in
- Overall Reach: 0.312in
- Reach Multiple: 10X
- Application
- Item Features
- Standards
Optimized for free machining varieties of carbon steels and stainless steels
- Reduced neck diameter to avoid heeling
- Variable helix design (approx. 38) reduces chatter and harmonics and increases material removal rates
- AlTiN coated for improved lubricity and heat resistance
- h6 shank tolerance for high precision tool holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel
- Overall Reach 0.3120 in (5/16)
- Reach Multiple (10x)
- Profile Square
