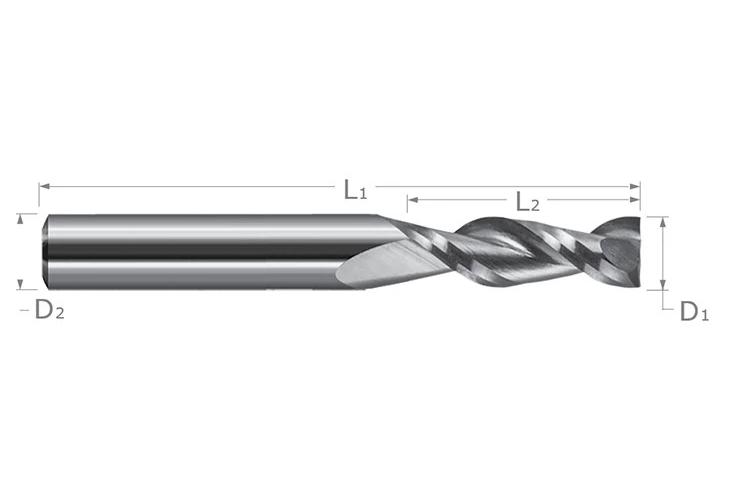

.031 D PLASTIC HIGH HELIX, 3xLOC 2FL

.031 D PLASTIC HIGH HELIX, 3xLOC 2FL

HATL898131 898131
66.00 / EA
http://schema.org/OutOfStock
.031 D PLASTIC HIGH HELIX, 3xLOC 2FL
  • Type: Center Cut High Helix
  • Cutter Diameter Decimal Inch: 0.0312
  • Cutter Diameter Fractional Inch: 1/32
  • Cutter Diameter Metric: 0.792
  • Number of Flutes: 2
  • Length of Cut Decimal Inch: 0.093, 0.09375
  • Length of Cut Fractional Inch: 3/32
  • Length of Cut Metric: 2.362, 2.381
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Single or Double End: Single
  • Helix Angle: 40 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
  • Standards
For Plastics, Square Upcut, 2 Flute product offering features tooling with a slower helix
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • 2 flute design improves rigidity for better accuracy, less deflection and longer tool life
  • Higher helix (approx 40 deg) for faster chip removal and better finish
  • Center cutting design improves plunging and ramping
  • Applicable Materials are Aluminum, Wood, Composites
  • Profile Square
