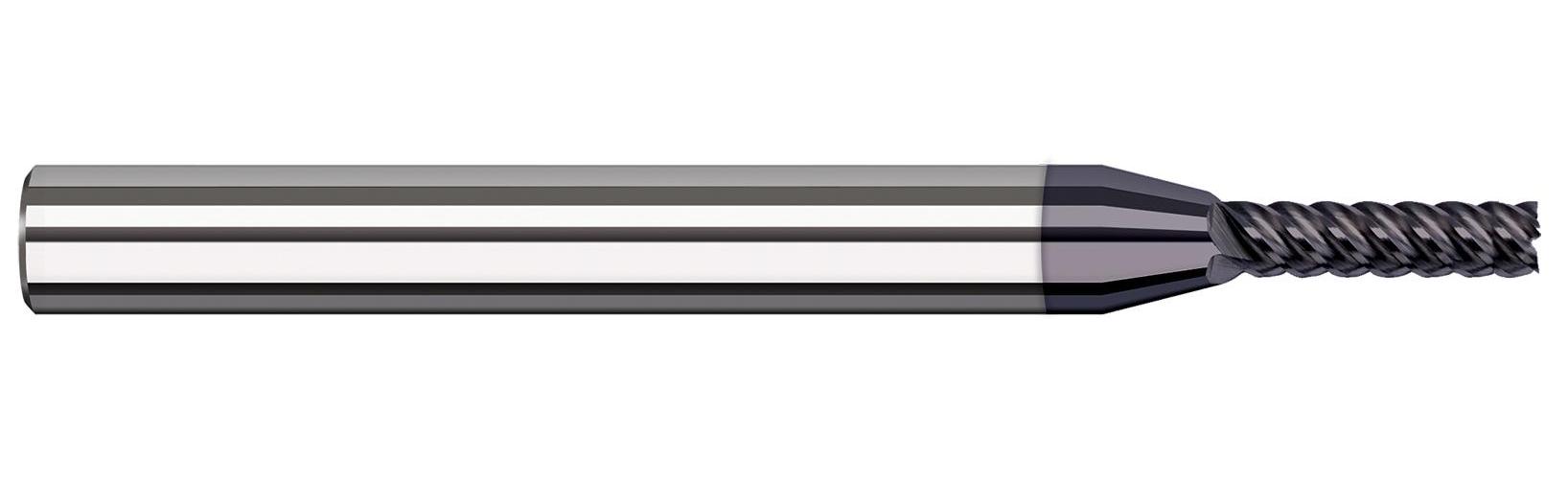

.015D HI-HELIX EX FINISHER END MILL
.015D HI-HELIX EX FINISHER END MILL
HATL890115-C6
890115-C6
72.80
/ EA
http://schema.org/OutOfStock
/Product/HATL890115-C6
- Type: Center Cut Variable Helix
- Cutter Diameter Decimal Inch: 0.015
- Cutter Diameter Fractional Inch: 1/64
- Cutter Diameter Metric: 0.381
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.062, 0.0625
- Length of Cut Fractional Inch: 1/16
- Length of Cut Metric: 1.575, 1.587
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano, C6
- Helix Angle: 41 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (4x)
- Manufacturer Name: Harvey Tool
- Item Features
- Variable helix design (approx. 41) reduces chatter and harmonics improving finish
- Large core and eccentric relief for improved tool life
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- End cutting (not center cutting)
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Profile Square
