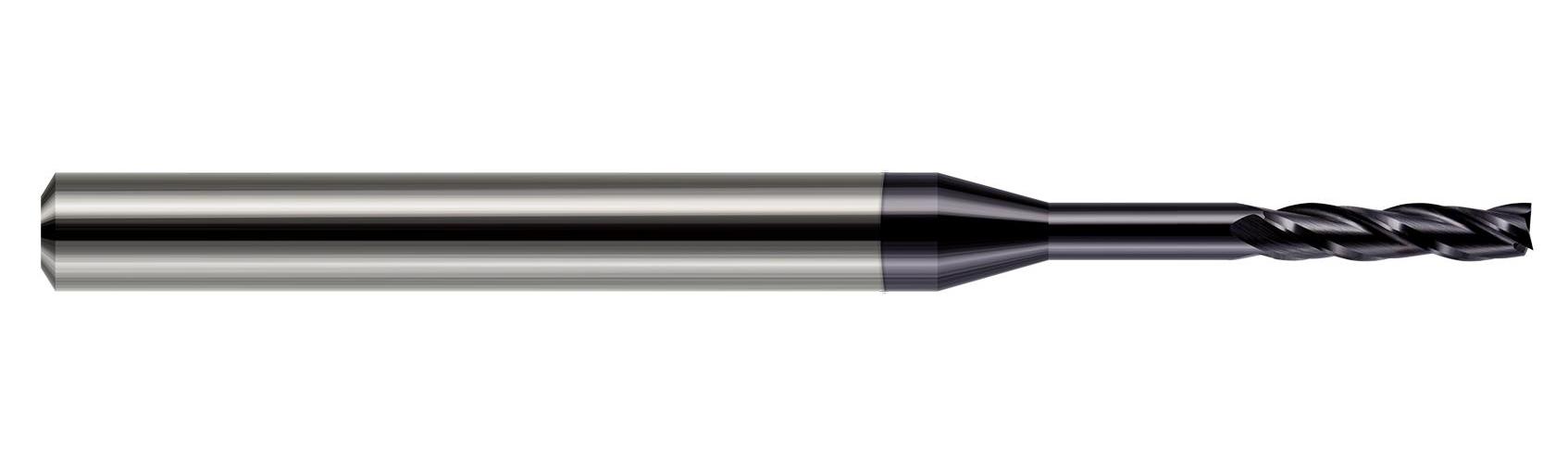

.031 LONG FL SQ END MILL 8x RCH AlTiN

.031 LONG FL SQ END MILL 8x RCH AlTiN

HATL876631-C3 876631-C3
53.28 / EA
http://schema.org/OutOfStock
.031 LONG FL SQ END MILL 8x RCH AlTiN
  • Type: Center Cut Long Length
  • Cutter Diameter Decimal Inch: 0.031
  • Cutter Diameter Fractional Inch: 1/32
  • Cutter Diameter Metric: 0.787
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.155
  • Length of Cut Metric: 3.937
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: AlTiN, C3
  • Single or Double End: Single
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Center Cutting: No
  • Chipbreaker: No
  • Country of Origin: US
  • Flute Type: Helical
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.03in
  • Overall Reach: 0.25in
  • Reach Multiple: 8X
  • Weldon Flat: No
QTY
Add to List
  • Application
  • Item Features
  • Standards
Optimized for deep cavity and deep pocket milling applications
  • Long length design for deep cavities
  • Long flutes for deep pocket milling
  • Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
  • Overall Reach 0.2500 in (1/4)
  • Reach Multiple (8x)
  • Profile Square
