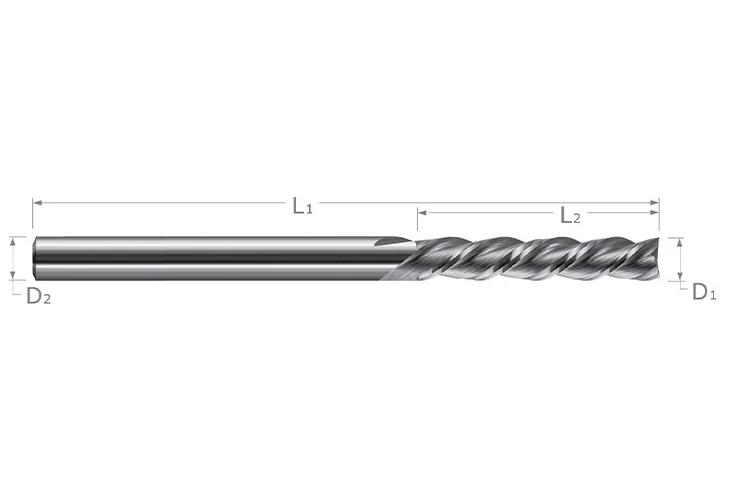

.031 D PLAS FINISH HI HLX DOWNCUT 5x LOC

.031 D PLAS FINISH HI HLX DOWNCUT 5x LOC

HATL864331 864331
74.80 / EA
http://schema.org/OutOfStock
.031 D PLAS FINISH HI HLX DOWNCUT 5x LOC
  • Type: Center Cut High Helix
  • Cutter Diameter Decimal Inch: 0.0312
  • Cutter Diameter Fractional Inch: 1/32
  • Cutter Diameter Metric: 0.792
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.156, 0.15625
  • Length of Cut Fractional Inch: 5/32
  • Length of Cut Metric: 3.962, 3.969
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Helix Angle: 40 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Downcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
  • Standards
Ideally suited for thin-walled applications
  • 3 left hand spiral, right hand cut flute, higher helix (approx. 40) design strengthens rigidity and increases cutting action to improve wall finish
  • Applicable Materials are Aluminum, Non-Ferrous Metal, Wood, Composites
  • Profile Square
PROP65: This product contains chemicals known to the State of California to cause cancer
