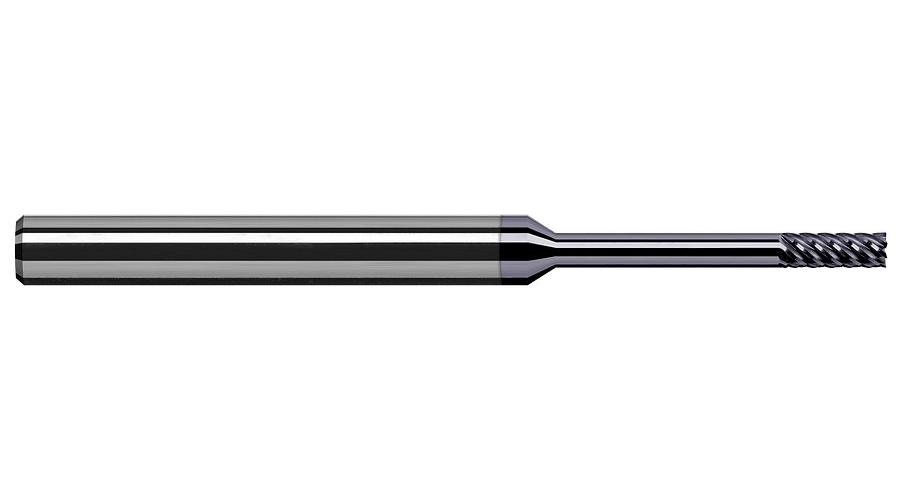

.031 D HI-HELIX EX FINISHER 10x RCH Nano
.031 D HI-HELIX EX FINISHER 10x RCH Nano
HATL862831-C6
862831-C6
74.40
/ EA
http://schema.org/OutOfStock
/Product/HATL862831-C6
- Type: Center Cut Variable Helix
- Cutter Diameter Decimal Inch: 0.031
- Cutter Diameter Fractional Inch: 1/32
- Cutter Diameter Metric: 0.787
- Number of Flutes: 6
- Length of Cut Decimal Inch: 0.093, 0.09375
- Length of Cut Fractional Inch: 3/32
- Length of Cut Metric: 2.362, 2.381
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano, C6
- Single or Double End: Single
- Helix Angle: 41 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Center Cutting: No
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.03in
- Overall Reach: 0.312in
- Reach Multiple: 10X
- Item Features
- Standards
- Reduced neck diameter to avoid heeling
- Variable helix design (approx. 41) reduces chatter and harmonics improving finish
- Large core and eccentric relief for improved tool life
- Coating offers superior hardness and heat resistance
- H6 shank tolerance for high precision tool holders
- End cutting (not center cutting)
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Overall Reach 0.3120 in (5/16)
- Reach Multiple (10x)
- Profile Square
