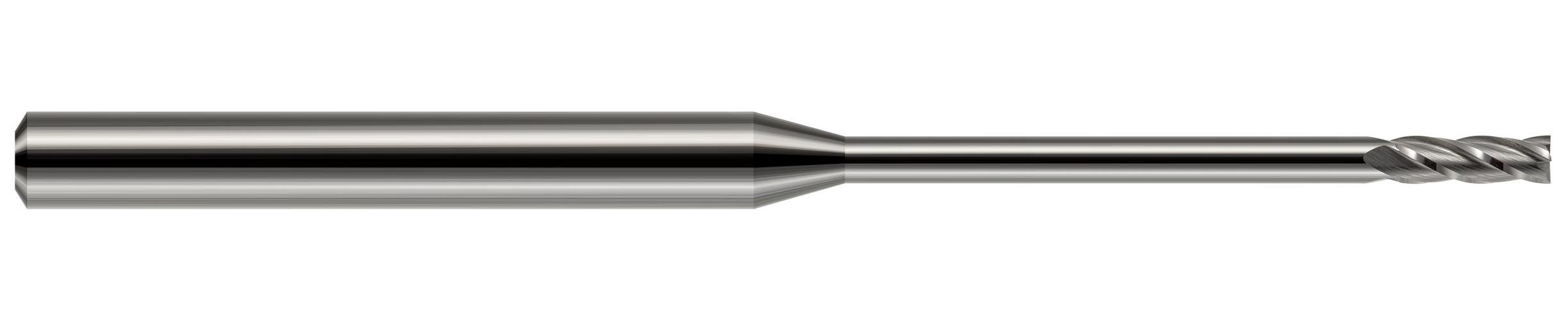

.031 CARB 15x LG RCH END MILL 4FL

.031 CARB 15x LG RCH END MILL 4FL

HATL838631 838631
50.30 / EA
http://schema.org/OutOfStock
.031 CARB 15x LG RCH END MILL 4FL
  • Type: Center Cut Standard Length
  • Cutter Diameter Decimal Inch: 0.031
  • Cutter Diameter Fractional Inch: 1/32
  • Cutter Diameter Metric: 0.787
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.093, 0.09375
  • Length of Cut Fractional Inch: 3/32
  • Length of Cut Metric: 2.362, 2.381
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Helical
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.03in
  • Overall Reach: 0.47in
  • Reach Multiple: 15X
QTY
Add to List
  • Item Features
  • Standards
  • 3x Dia Length of Cut
  • Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Overall Reach 0.4700 in
  • Reach Multiple (15x)
  • Profile Square
PROP65: This product contains chemicals known to the State of California to cause cancer
