.031 4FL CARB 10x LG FL END MILL

.031 4FL CARB 10x LG FL END MILL

HATL802631-C3 802631-C3
85.68 / EA
http://schema.org/OutOfStock

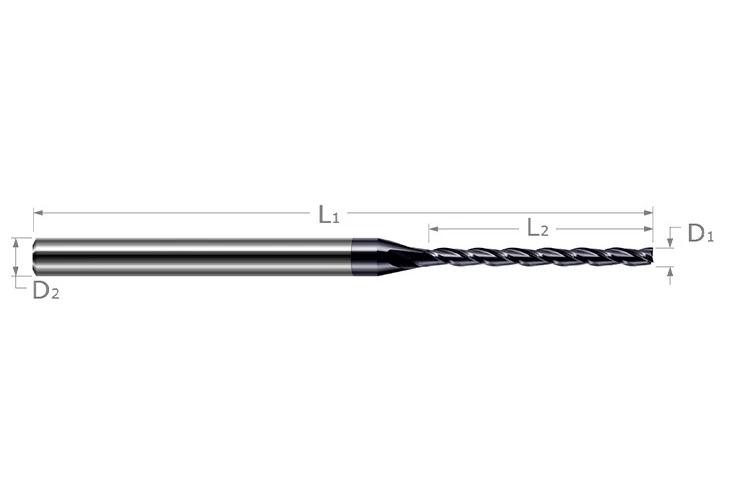

.031 4FL CARB 10x LG FL END MILL
  • Type: Long Flute
  • Cutter Diameter Decimal Inch: 0.031
  • Cutter Diameter Fractional Inch: 1/32
  • Cutter Diameter Metric: 0.787
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.312
  • Length of Cut Fractional Inch: 5/16
  • Length of Cut Metric: 7.925
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: AlTiN
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Helical
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Designed for deep cavities and engineered to deliver excellence when milling deep pockets
  • Long length design for deep cavities, up to 8 in overall length
  • Corner radius for improved strength
