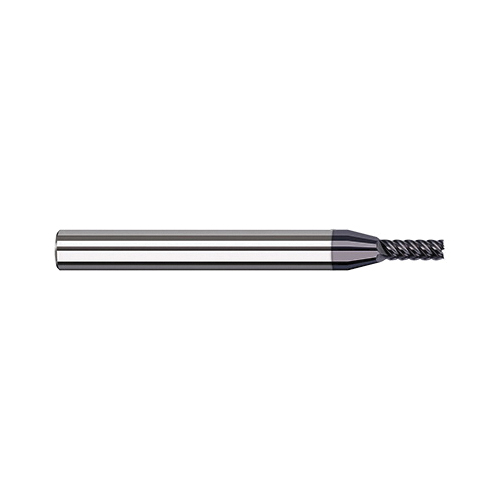

.020" 4F 3X VAR HELIX CARB FINISHING END MILL
.020" 4F 3X VAR HELIX CARB FINISHING END MILL
HATL57820-C6
57820-C6
68.00
/ EA
http://schema.org/OutOfStock
/Product/HATL57820-C6
- Type: Imperial Variable Helix
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.06
- Length of Cut Metric: 1.524
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano Coated
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Performance Company, Harvey Tool
- Application
- Item Features
Finishing Applications
- Variable helix design (approximately 41 deg) reduces chatter and harmonics, improving finish
- Large core and eccentric relief for improved tool life
- Latest generation AlTiN Nano coating offers superior hardness and heat-resistance
- h6 shank tolerance for high precision tool holders
- End cutting (not-center cutting)
