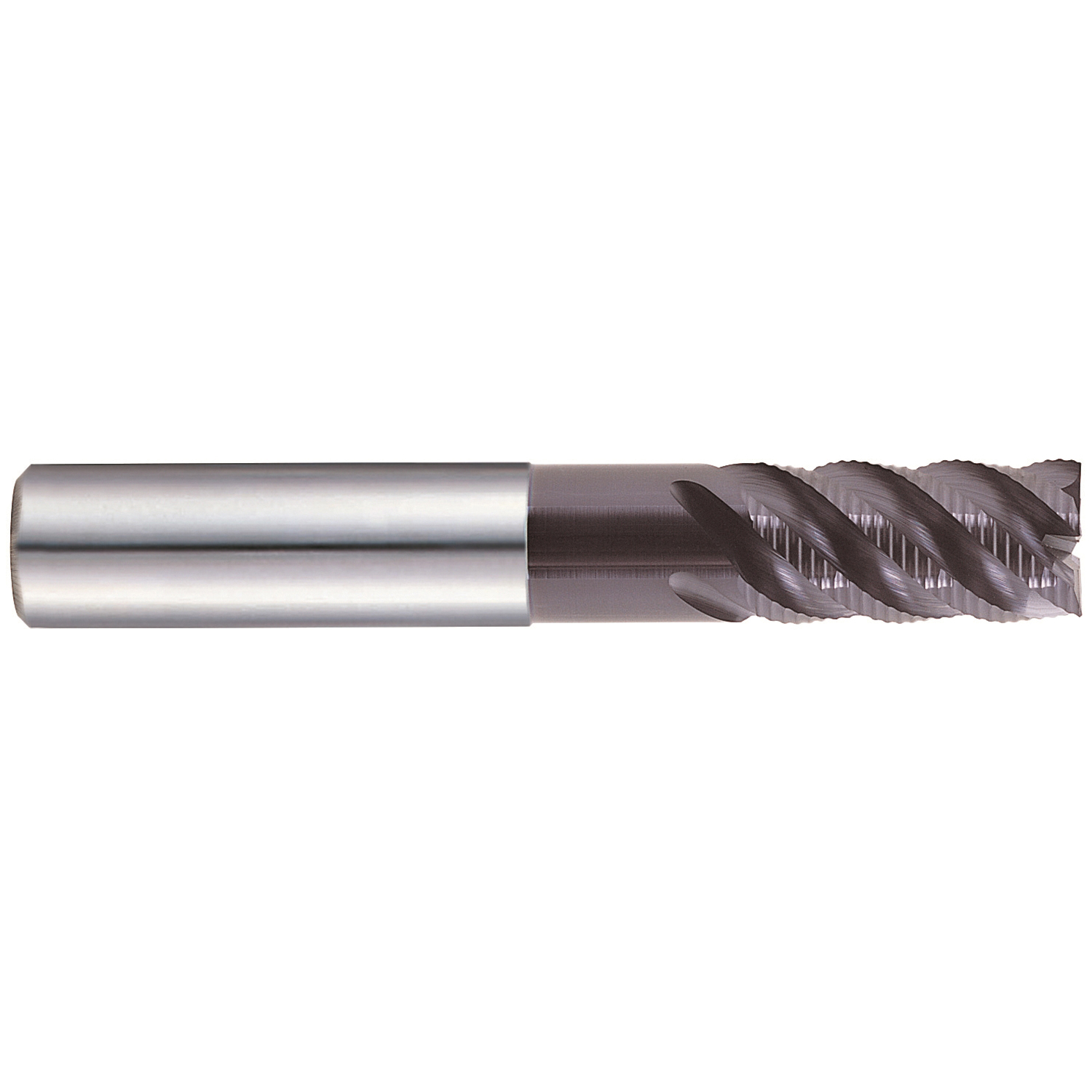

3/8 x3/8 N.355 4 FLUTE LONG R
3/8 x3/8 N.355 4 FLUTE LONG R
YGTC95103
95103
100.86
/ EA
http://schema.org/OutOfStock
/Product/YGTC95103
- Type: Center Cut Fine Pitch High Performance Imperial Long Reach Multi-Flute
- Cutter Diameter Decimal Inch: 0.375
- Cutter Diameter Fractional Inch: 3/8
- Cutter Diameter Metric: 9.525
- Flute Type: Spiral
- Helix Angle: 45°
- Length of Cut Decimal Inch: 0.875
- Length of Cut Fractional Inch: 7/8
- Length of Cut Metric: 22.225
- Material: Micrograin Carbide
- Number of Flutes: 4
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Shank Diameter Decimal Inch: 0.375
- Shank Diameter Fractional Inch: 3/8
- Shank Type: Plain
- Surface Treatment: TiAlN Coated
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Series: EH970 JET-POWER
- Application
- Item Features
Slotting and Side Cutting Applications
- Suitable for low hardness materials (under HRC45), alloy steels, tool steels, carbon steels, pre-hardened steels, stainless steel, titanium, inconel, nimonic, etc
- High chip removed and minimizing breakages of cutting edges
- Corner protection against chipping
