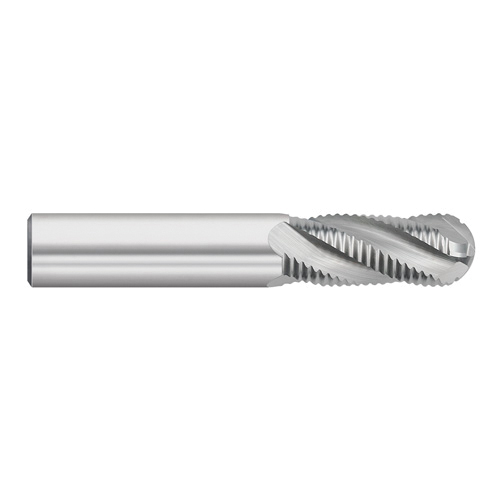

207 1/4 CARB BALL ROUGHER END MILL

207 1/4 CARB BALL ROUGHER END MILL

TIUSTC20716 TC20716
66.10 / EA
http://schema.org/OutOfStock
207 1/4 CARB BALL ROUGHER END MILL
  • Type: Ball Nose Fine Pitch Regular Flute
  • Cutter Diameter Decimal Inch: 0.25
  • Cutter Diameter Fractional Inch: 1/4
  • Cutter Diameter Metric: 6.35
  • Number of Flutes: 4
  • Helix Angle: 30°
  • Length of Cut Decimal Inch: 0.75
  • Length of Cut Fractional Inch: 3/4
  • Length of Cut Metric: 19.05
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Shank Diameter Decimal Inch: 0.25
  • Shank Diameter Fractional Inch: 1/4
  • Series: 207
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: TITAN USA
QTY
Add to List
  • Application
High Speed Machining, Plunging, Profiling, Roughing and Slotting
