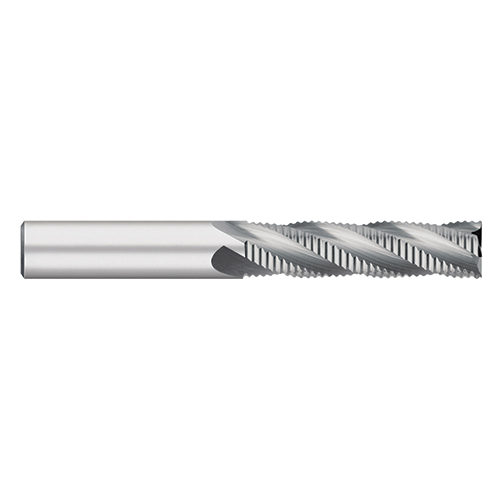

206 1/4 CARB LG ROUGHER END MILL

206 1/4 CARB LG ROUGHER END MILL

TIUSTC20616 TC20616
75.90 / EA
http://schema.org/OutOfStock
206 1/4 CARB LG ROUGHER END MILL
  • Type: Center Cutting Fine Pitch Long Length Single End
  • Cutter Diameter Decimal Inch: 0.25
  • Cutter Diameter Fractional Inch: 1/4
  • Cutter Diameter Metric: 6.35
  • Flute Type: Knuckle
  • Number of Flutes: 4
  • Helix Angle: 30°
  • Length of Cut Decimal Inch: 1.5
  • Length of Cut Fractional Inch: 1-1/2
  • Length of Cut Metric: 38.1
  • Overall Length Decimal Inch: 4
  • Overall Length Fractional Inch: 4
  • Overall Length Metric: 101.6
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Shank Diameter Decimal Inch: 0.25
  • Shank Diameter Fractional Inch: 1/4
  • Shank Type: Cylindrical
  • Series: 206
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: TITAN USA
QTY
Add to List
  • Application
High Speed Machining, Plunging, Profiling, Roughing and Slotting
