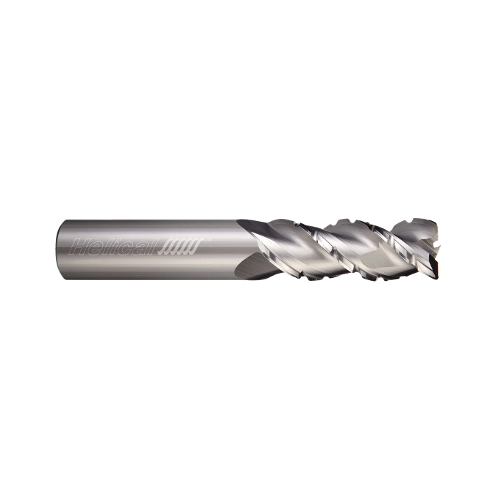

1/2 3FL 0.03CR 2INLOC END MILL
1/2 3FL 0.03CR 2INLOC END MILL
HESL29435
29435
132.30
/ EA
http://schema.org/OutOfStock
/Product/HESL29435
- Type: Center Cut Imperial
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Flute Type: Spiral
- Helix Angle: 45 deg
- Length of Cut Decimal Inch: 2
- Length of Cut Fractional Inch: 2
- Length of Cut Metric: 50.8
- Material: Carbide
- Number of Flutes: 3
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Shank Type: Reduced
- Surface Treatment: Un, UNCOATED
- Center Cutting: Yes
- Chipbreaker: Yes
- Corner Radius: 0.03 in, 0.03in
- Country of Origin: US
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (4x)
- Manufacturer Name: Helical Solutions
- Series: H45AL-C-3
The unique tool design of our 3 flute, 45 deg helix chip breaker for aluminum means it requires less torque and horsepower to work its way through your part. As a result, your tool experiences reduced strain, increasing its durability and life while the chip breaker geometry enhances chip evacuation.
- Application
- Item Features
Long Reach and Deep Pocketing Applications
- Offset chip breaker geometry creates smaller chips for optimal evacuation and a semi-finished surface
- Unique tool design requires less torque and horsepower
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Excellent performance in high efficiency milling (HEM)
- h6 shank tolerance for high precision tool holders
- Zplus coating for maximum performance in aluminum and non-ferrous alloys
