.062R 2FL .047 PILOT DIA DE CARB CR END MILL

.062R 2FL .047 PILOT DIA DE CARB CR END MILL

HATL46062-C3 46062-C3
61.00 / EA
http://schema.org/OutOfStock

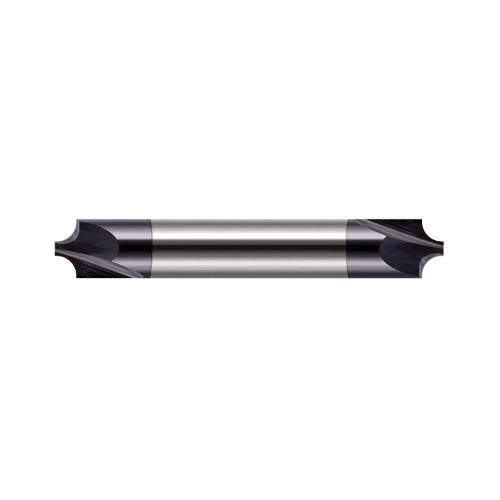

.062"R 2FL DE CORNER ROUNDING END MILL
  • Length of Cut Decimal Inch: 0.067
  • Length of Cut Metric: 1.702
  • Type: Double End Imperial Unflared
  • Cutter Diameter Decimal Inch: 0.1875
  • Cutter Diameter Fractional Inch: 3/16
  • Cutter Diameter Metric: 4.762
  • Number of Flutes: 2
  • Surface Treatment: AlTiN Coated
  • Overall Length Decimal Inch: 2
  • Overall Length Fractional Inch: 2
  • Overall Length Metric: 50.8
  • Shank Diameter: 3/16 in, 3/16in
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Material: Solid Carbide
  • Shank Diameter Decimal Inch: 0.1875
  • Shank Diameter Fractional Inch: 3/16
QTY
Add to List
  • Item Features
  • Unflared shoulder and pilot for full radius form
