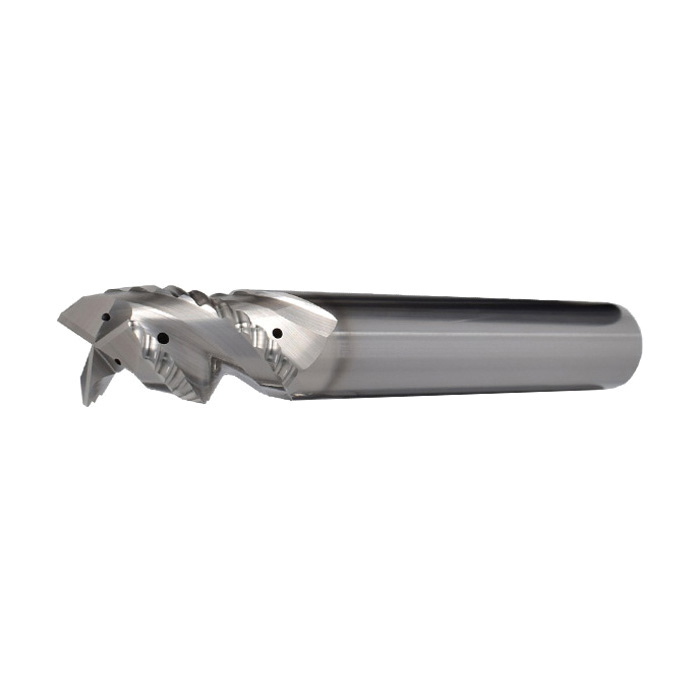

1" SER APR-3 3FL .030R S-CARB END MILL
1" SER APR-3 3FL .030R S-CARB END MILL
SGS34124
34124
638.94
/ EA
http://schema.org/OutOfStock
/Product/SGS34124
- Type: Fractional Long Reach
- Cutter Diameter Decimal Inch: 1
- Cutter Diameter Fractional Inch: 1
- Cutter Diameter Metric: 25.4
- Corner Radius: 0.03in
- Number of Flutes: 3
- Length of Cut Decimal Inch: 1.75
- Length of Cut Fractional Inch: 1-3/4
- Length of Cut Metric: 44.45
- Overall Length Decimal Inch: 4.5
- Overall Length Fractional Inch: 4-1/2
- Overall Length Metric: 114.3
- Material: Solid Carbide
- Surface Treatment: Ti-NAMITE®-B Coated
- Helix Angle: 38°
- Shank Diameter Decimal Inch: 1
- Shank Diameter Fractional Inch: 1
- Series: APR3
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
The S-Carb® Advanced Productivity Rougher (APR-3) was engineered for high power, high efficiency machining of aluminum aerospace structural parts. Material removal rates (MRR) of 600 cu-in is achievable with remarkable tool life and product finish. The APR-3 MRR capabilities are nearly six times that of its nearest competition based on lab testing. It is easy to see why KYOCERA SGS Precision Tools is known around the world as an authority in aluminum machining with the power and capability of the APR and its sibling tool, APF.
- Application
- Item Features
- Standards
Aerospace Applications
- Jet stream technology
- Three flute design for high feed power roughing
- 1XD full slotting capability up to 5XD reach
- High feed direct plunge ability
- Open flute design allows for deep slotting and profiling operations
- Enhanced and simplified coolant hole design
- Variable pitch geometry allows for 600 cpm MRR capability
- Ti-NAMITE®-B ceramic based coating with industry leading built up edge protection
