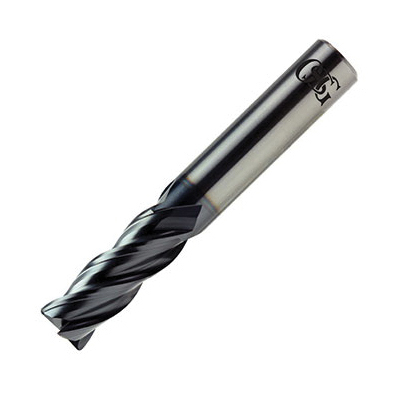

3/4 x 1-1/2 4FL VGX .030CR CARB END MILL
3/4 x 1-1/2 4FL VGX .030CR CARB END MILL
OSGVG434-7500
VG434-7500
302.25
/ EA
http://schema.org/OutOfStock
/Product/OSGVG434-7500
- Type: Center Cutting High Performance Regular Length Single End
- Cutter Diameter Decimal Inch: 0.75
- Cutter Diameter Fractional Inch: 3/4
- Cutter Diameter Metric: 19.05
- Corner Radius: 0.03in
- Number of Flutes: 4
- Length of Cut Decimal Inch: 1.5
- Length of Cut Fractional Inch: 1-1/2
- Length of Cut Metric: 38.1
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Material: Carbide
- Surface Treatment: TiAlN Coated
- Helix Angle: 35°
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Series: HY-PRO® CARB VGx VG434
- Shank Type: WELDON FLAT
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
End mills are used to cut and contour molds for plastic parts, which include electric home appliances, die casting dies for automotive parts and stamping molds. To meet today's demanding requirements (smaller size, lower weight and reduced cost), OSG has developed many carbide end mills that are excellent in both processing accuracy and durability.
- Item Features
- Standards
- Corner radius end mills feature a radius at the corner edge of the mill
- Unequal flute spacing reduces vibration from harmonic vibration, increasing life and enabling more aggressive milling
- Raised land configuration provides additional stability when taking deeper depths of cut for more consistent performance during roughing
- TiAlN coating provides stable wear-resistance in high temperature milling conditions
- High performance variable index end mills for difficult to machine materials
