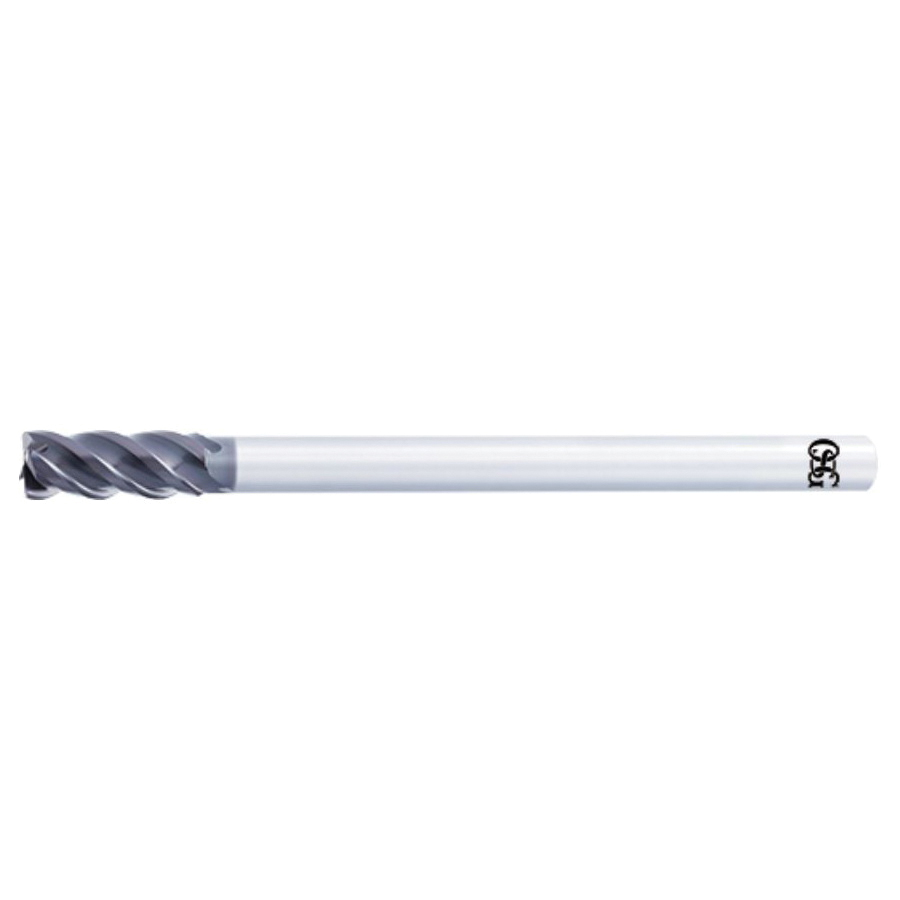

10MM x 25MM x 0.5CR 4FL AE-CR-VMFE END MILL
10MM x 25MM x 0.5CR 4FL AE-CR-VMFE END MILL
OSG8549965
8549965
308.18
/ EA
http://schema.org/OutOfStock
/Product/OSG8549965
- Type: Advanced Performance Anti-Vibration Center Cutting Long Length
- Cutter Diameter Decimal Inch: 0.394
- Cutter Diameter Metric: 10
- Corner Radius: 0.5mm
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.984
- Length of Cut Metric: 25
- Overall Length Decimal Inch: 130
- Overall Length Metric: 3302
- Material: Carbide
- Surface Treatment: Duarise Coated
- Shank Diameter Decimal Inch: 0.315
- Shank Diameter Metric: 8
- Series: 8246
- Shank Type: Reduced/Shrink Fit
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
The A Brand® AE-VMFE for deep side milling is an anti-vibration carbide end mill series engineered to excel in a wide range of materials including carbon steel, alloy steel, stainless steel, titanium alloys and Ni-based alloys. With the AE-VMFE deep side milling at L/D of 5xD or more can be machined with high efficiency and high accuracy by large step milling up to 2xD with its 2.5xD cutting length configuration.
- Application
- Item Features
For used to cut and contour molds for plastic parts, which include electric home appliances, die-casting dies for automotive parts and stamping molds
- R-shape on the shank side edge suppresses streak generation
- 2.5 cutting length make highly efficient deep side milling possible
- Variable lead, unequal teeth spacing and micro relief geometry suppress chattering up to L/D of 8
