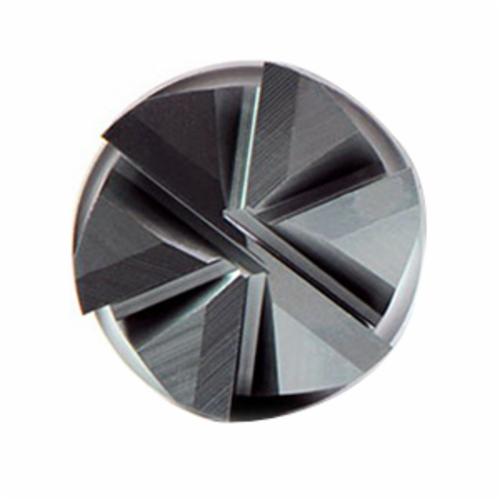

10 x R2 4FL EXOCARB WXS CR END MILL
10 x R2 4FL EXOCARB WXS CR END MILL
OSG457010011
457010011
202.84
/ EA
http://schema.org/OutOfStock
/Product/OSG457010011
- Corner Radius: 2mm
- Cutter Diameter Metric: 10mm
- Type: Center Cutting High Performance Regular Length
- Number of Flutes: 4
- Length of Cut: 4mm
- Overall Length: 100mm
- Material: Micrograin Solid Carbide
- Surface Treatment: WXS Coated
- Shank Diameter: 10mm
- Shank Type: Cylindrical
- Series: 4570
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
EXOCARB® WXS® end mills are the new industry standard for hard milling. Everything about WXS is designed for rigidity and performance in hardened steel 50 HRC and greater. Substrates, geometry and proprietary WXS coating are all specifically tailored for hardened steels like D2, A2, S7, H13 and CPM.
- Application
- Item Features
- Standards
For hardened steel
- Ultra fine micrograin carbide - the hardest most wear resistant carbide possible for incredible wear resistance
- High precision geometry - all corner radius & ball mills have +/-5um radius tolerance
- High accuracy all but eliminates need for benching and rework for mold makers
- High strength core diameter - tools utilize thicker core diameters for the ultimate in strength and rigidity
- WXS coating - +1300 Celsius oxidation temperature and +3500Hv in hardness
- Higher coating oxidation temp and hardness dramatically improve wear resistance
PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
