10 x R1 E x OCARB AM-CRE END MILL
10 x R1 E x OCARB AM-CRE END MILL
OSG3183110
3183110
254.28
/ EA
http://schema.org/OutOfStock
/Product/OSG3183110
- Type: Non-Center Cutting Stub Length
- Cutter Diameter Decimal Inch: 0.394
- Cutter Diameter Metric: 10
- Corner Radius: 1mm
- Number of Flutes: 6
- Length of Cut Decimal Inch: 0.591
- Length of Cut Metric: 15.011
- Overall Length Decimal Inch: 80
- Overall Length Metric: 2032
- Material: Carbide
- Surface Treatment: Durorey Coated
- Helix Angle: 60°
- Shank Diameter Decimal Inch: 0.394
- Shank Diameter Metric: 10
- Series: 4770
- Shank Type: Shrink Fit
- Has Attributes: Yes
- Has Image: Yes

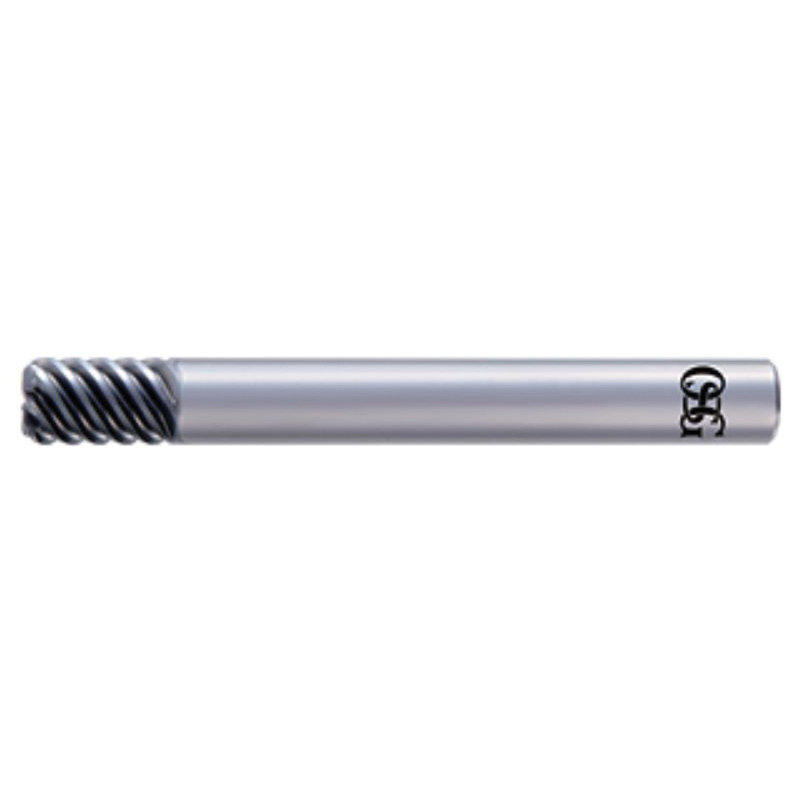

The OSG EXOCARB® AM-CRE carbide radius-type (six flute/eight flute) end mills designed for post processing of additive manufacturing and milling in hardened steels.
- Application
- Item Features
- Standards
For used to cut and contour molds for plastic parts, which include electric home appliances, die-casting dies for automotive parts and stamping molds and for additive manufacturing
- Newly developed durorey coating enables superior heat resistance and high toughness optimized for high hardness steel milling
- Radius-type (six flute/eight flute) suitable for milling of built-up welding parts
- https://youtu.be/UIJdxi9oadc
