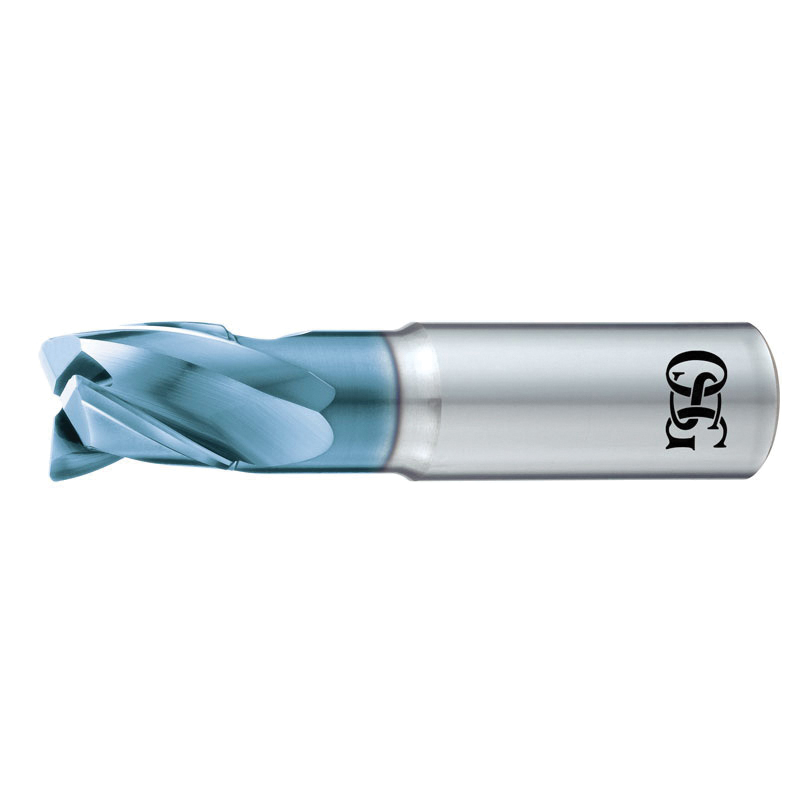

1" 3FL .120CR NECK END MILL
1" 3FL .120CR NECK END MILL
OSG28744000
28744000
1008.40
/ EA
http://schema.org/OutOfStock
/Product/OSG28744000
- Type: High Speed Non-Center Cutting Single End Stub Length Square
- Cutter Diameter Decimal Inch: 1
- Cutter Diameter Fractional Inch: 1
- Cutter Diameter Metric: 25.4
- Corner Radius: 0.12in
- Number of Flutes: 3
- Length of Cut Decimal Inch: 1.523
- Length of Cut Metric: 38.684
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Material: Carbide
- Surface Treatment: DLC Coated
- Helix Angle: 30°
- Shank Diameter Decimal Inch: 1
- Shank Diameter Fractional Inch: 1
- Series: 2874
- Shank Type: Shrink Fit
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
EXOCARB®-Aero DLC coating enables the Aero DLC to produce a superior surface finish even in high speed machining applications.
- Application
- Item Features
- Standards
For used to cut and contour molds for plastic parts, which include electric home appliances, die-casting dies for automotive parts and stamping molds and for aluminum
- High rigidity applicable for high power equipment
- Optimal flute shape excellent chip evacuation
- Sharp cutting edge exceptional performance in aluminum alloy
- DLC coating excellent welding resistance and lubricity
PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
