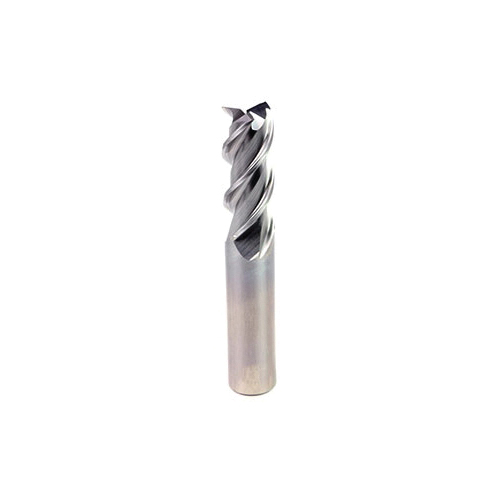

1/4 x 3/4 2FL EXO-AL REG .020CR END MILL
1/4 x 3/4 2FL EXO-AL REG .020CR END MILL
OSG20221800
20221800
57.64
/ EA
http://schema.org/OutOfStock
/Product/OSG20221800
- Type: Center Cutting Performance Regular Length Single End
- Cutter Diameter Decimal Inch: 0.25
- Cutter Diameter Fractional Inch: 1/4
- Cutter Diameter Metric: 6.35
- Corner Radius: 0.02in
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.75
- Length of Cut Fractional Inch: 3/4
- Length of Cut Metric: 19.05
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Carbide
- Surface Treatment: Bright
- Helix Angle: 30°
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Series: EXOCARB® AERO BLIZZARD® 2022
- Shank Type: Shrink Fit
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
The EXOCARB® Aero Blizzard® series is part of the OSG premium line of carbide high performance end mills specifically designed for either Aluminum or Copper alloys. Special end cut gashing and offset teeth permit large depths of cut and maximum feed per tooth. Made with polished flutes to enhance tool life and reduce BUE, this end mill yields 45 to 50% higher metal removal rates in roughing applications, and superior finishing capability.
- Application
- Item Features
- Standards
Aerospace, Job Shops, Roughing, Finishing and Contouring Applications
- Corner radius end mills feature a radius at the corner edge of the mill
- Refined geometry larger depth of cut and maximum feed per tooth
- Ultra smooth flute enhances tool life by reducing BUE
- Performance carbide end mills for aluminum
PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
