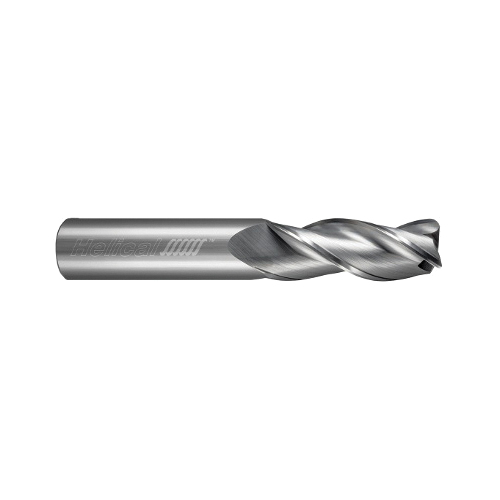

3/4 3FL 0.09CR 1-5/8LOC END MILL
3/4 3FL 0.09CR 1-5/8LOC END MILL
HESL59202
59202
186.00
/ EA
http://schema.org/OutOfStock
/Product/HESL59202
- Type: Center Cut Imperial
- Cutter Diameter Decimal Inch: 0.75
- Cutter Diameter Fractional Inch: 3/4
- Cutter Diameter Metric: 19.05
- Corner Radius: 0.09 in, 0.09in
- Number of Flutes: 3
- Length of Cut Decimal Inch: 1.625
- Length of Cut Fractional Inch: 1-5/8
- Length of Cut Metric: 41.275
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Material: Carbide
- Surface Treatment: Un, UNCOATED
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Series: H35AL-3
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (2x)
- Manufacturer Name: Helical Solutions
Intended to withstand aggressive running parameters, the H35AL-3 is designed with the strength necessary for tough roughing applications and a Zplus coating for optimized performance in aluminum and non-ferrous alloys.
- Application
- Item Features
Tough Roughing Applications
- Combination of 35 deg helix and 3 flute design provides strength in tough roughing applications
- Cylindrically ground to maintain edge strength
- Excellent performance in high efficiency milling (HEM)
- h6 shank tolerance for high precision tool holders
