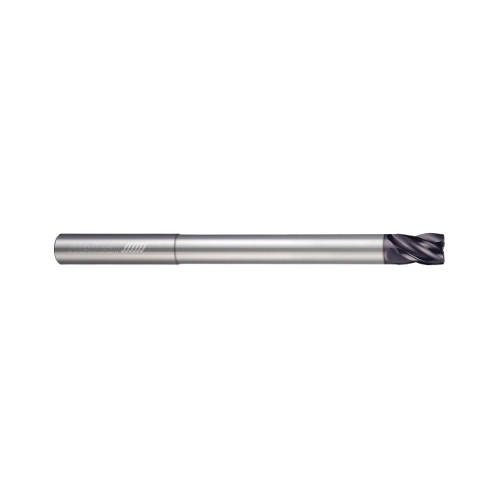

1IN 4FL 0.03CR 1-1/4LOC END MILL
1IN 4FL 0.03CR 1-1/4LOC END MILL
HESL32437
32437
761.10
/ EA
http://schema.org/OutOfStock
/Product/HESL32437
- Type: Center Cut Imperial Variable Pitch
- Cutter Diameter Decimal Inch: 1
- Cutter Diameter Fractional Inch: 1
- Cutter Diameter Metric: 25.4
- Corner Radius: 0.03 in, 0.03in
- Number of Flutes: 4
- Length of Cut Decimal Inch: 1.25
- Length of Cut Fractional Inch: 1-1/4
- Length of Cut Metric: 31.75
- Overall Length Decimal Inch: 6
- Overall Length Fractional Inch: 6
- Overall Length Metric: 152.4
- Material: Carbide
- Surface Treatment: Aplus Coated
- Shank Diameter Decimal Inch: 1
- Shank Diameter Fractional Inch: 1
- Series: HSV-RN-4
- Shank Type: Reduced
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (1x)
- Manufacturer Name: Helical Solutions
- Neck Diameter: 0.95in
- Overall Reach: 4-1/8in
- Reach Multiple: (4x)
Designed for smooth machining in deep pockets, the HSV-RN-4 features variable pitch geometry for decreased chatter and harmonics, as well as a reduced neck for maximum strength in long reach applications. Featuring an eccentric relief for maximum edge strength and an Aplus coating for improved performance in tough materials, this tool is a strong choice for a variety of applications.
- Application
- Item Features
Finishing and Roughing Applications
- Eccentric relief for maximum edge strength
- Special geometry allows for both roughing and finishing applications
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- h6 shank tolerance for high precision tool holders
- Aplus coated for added lubricity, higher speeds and feeds and increased wear-resistance
