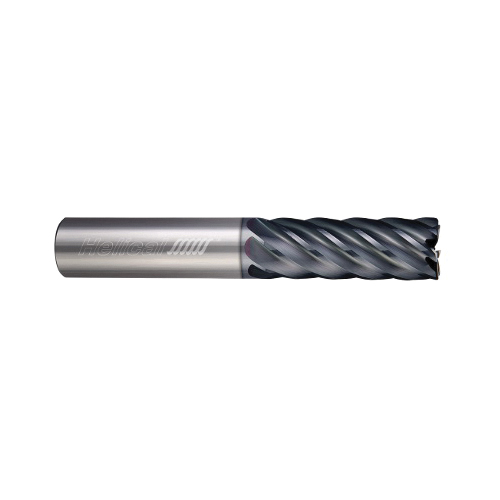

1/2 7FL 0.03CR 1-1/4LOC END MILL
1/2 7FL 0.03CR 1-1/4LOC END MILL
HESL27287
27287
142.20
/ EA
http://schema.org/OutOfStock
/Product/HESL27287
- Type: Imperial Variable Pitch
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Corner Radius: 0.03 in, 0.03in
- Number of Flutes: 7
- Length of Cut Decimal Inch: 1.25
- Length of Cut Fractional Inch: 1-1/4
- Length of Cut Metric: 31.75
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Material: Carbide
- Surface Treatment: Aplus Coated
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Series: HEV-7
- Center Cutting: No
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (2.5x)
- Manufacturer Name: Helical Solutions
The HEV-7 is designed to withstand and excel in the toughest applications and materials. The high flute count and variable pitch geometry give this tool the strong core and extreme performance necessary for steels, high temperature alloys and titanium.
- Application
- Item Features
For toughest applications and materials
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- End cutting geometry (non-center cutting)
- Excellent performance in high efficiency milling (HEM)
- 7 flute design offers a large core for added strength
- h6 shank tolerance for high precision tool holders
- Aplus coated for added lubricity, higher speeds and feeds and increased wear-resistance
