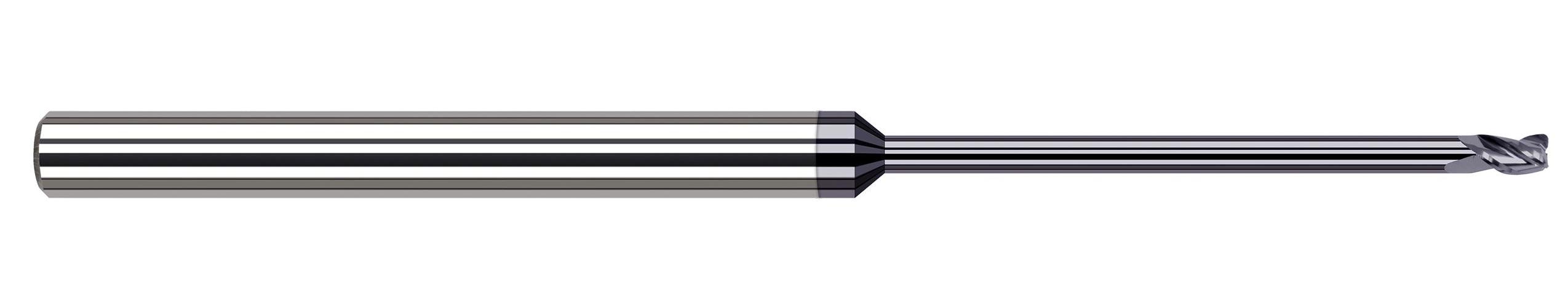

.015 D V-HELIX EX, 15x RCH, Al

.015 D V-HELIX EX, 15x RCH, Al

HATL968915-C6 968915-C6
88.10 / EA
http://schema.org/OutOfStock
.015 D V-HELIX EX, 15x RCH, Al
  • Corner Radius: 0.003 in, 0.003in
  • Cutter Diameter Inch: 0.015in
  • Type: Center Cut Stub Length Variable Helix
  • Number of Flutes: 3
  • Length of Cut: 0.023 in, 0.023in
  • Overall Length: 2.5in, 2-1/2 in
  • Material: Solid Carbide
  • Surface Treatment: AlTiN Nano, C6
  • Helix Angle: 34 deg
  • Shank Diameter: 0.125in, 1/8 in
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.0142in
  • Overall Reach: 0.225in
  • Reach Multiple: 15X
QTY
Add to List
  • Application
  • Item Features
  • Standards
Suitable for steels up to 45Rc
  • Reduced neck diameter to avoid heeling
  • Variable helix design (approx. 34) reduces chatter and harmonics and increases material removal rates
  • Corner radius available for improved strength
  • Latest generation coating offers superior hardness and heat resistance
  • H6 shank tolerance for high precision tool holders
  • Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
  • Overall Reach 0.2250 in
  • Reach Multiple (15x)
