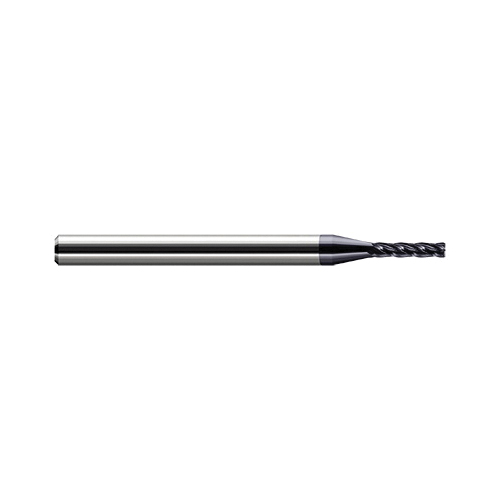

.031 D x .005 R 5x LONG FLUTE

.031 D x .005 R 5x LONG FLUTE

HATL959631-C3 959631-C3
79.88 / EA
http://schema.org/OutOfStock
.031 D x .005 R 5x LONG FLUTE
  • Type: Center Cut Imperial Long Length Miniature
  • Cutter Diameter Decimal Inch: 0.03125
  • Cutter Diameter Fractional Inch: 1/32
  • Cutter Diameter Metric: 0.794
  • Corner Radius: 0.005 in, 0.005in
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.15625
  • Length of Cut Fractional Inch: 5/32
  • Length of Cut Metric: 3.969
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: AlTiN Coated
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
Deep Cavity and Mills Deep Pockets Applications
