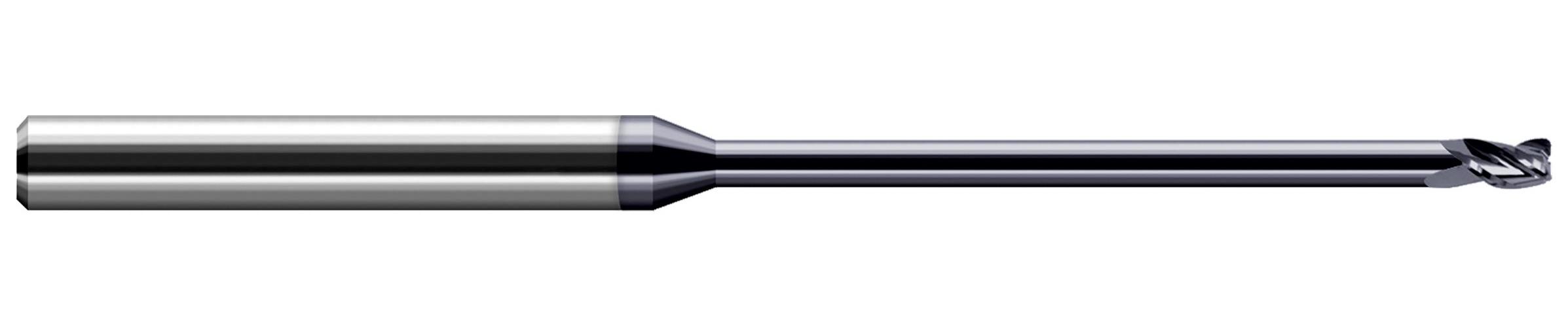

.031 .010R STB FL 15x RCH END MILL
.031 .010R STB FL 15x RCH END MILL
HATL947831-C3
947831-C3
74.18
/ EA
http://schema.org/OutOfStock
/Product/HATL947831-C3
- Type: Stub Length Long Reach
- Cutter Diameter Decimal Inch: 0.031
- Cutter Diameter Fractional Inch: 1/32
- Cutter Diameter Metric: 0.787
- Corner Radius: 0.01 in, 0.01in
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.046
- Length of Cut Metric: 1.168
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN, C3
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.03in
- Overall Reach: 0.47in
- Reach Multiple: 15X
- Item Features
- Standards
- Long length design for deep cavities, up to 8 in overall length
- Corner radius for improved strength
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Overall Reach 0.4700 in
- Reach Multiple (15x)
