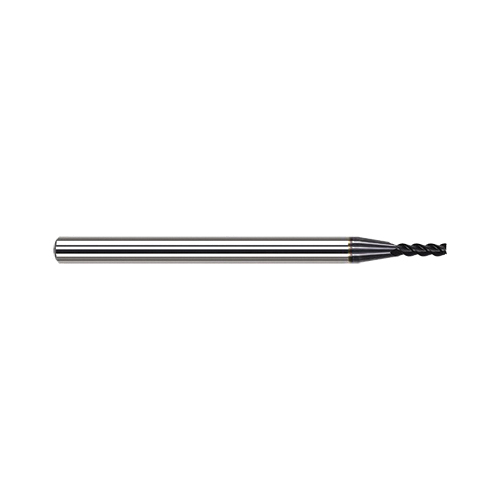

.125 D x .030 R V-HELIX EX, 3x

.125 D x .030 R V-HELIX EX, 3x

HATL943908-C6 943908-C6
52.00 / EA
http://schema.org/OutOfStock
.125 D x .030 R V-HELIX EX, 3x
  • Type: Center Cut Imperial Variable Helix
  • Cutter Diameter Decimal Inch: 0.125
  • Cutter Diameter Fractional Inch: 1/8
  • Cutter Diameter Metric: 3.175
  • Corner Radius: 0.03 in, 0.03in
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.375
  • Length of Cut Fractional Inch: 3/8
  • Length of Cut Metric: 9.525
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: AlTiN Nano Coated
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Country of Origin: US
  • Flute Type: Spiral
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Performance Company, Harvey Tool
QTY
Add to List
  • Item Features
  • Variable helix design (approximately 34 deg) reduces chatter and harmonics and increases material removal rates
  • Latest generation AlTiN Nano coating offers superior hardness and heat-resistance
  • h6 shank tolerance for high precision tool holders
  • Suitable for steels up to 45RC
