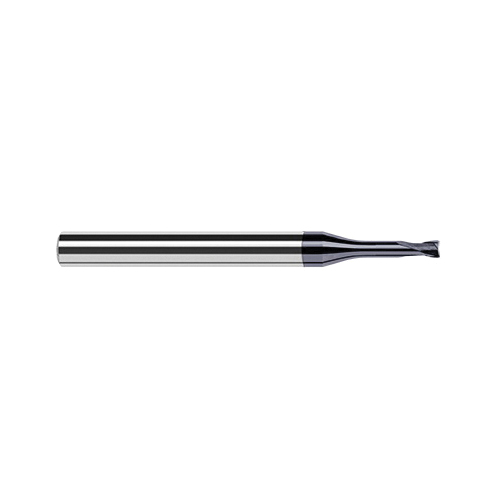

1/8 x.100x.375RCH .015R 3x
1/8 x.100x.375RCH .015R 3x
HATL938808-C6
938808-C6
106.00
/ EA
http://schema.org/OutOfStock
/Product/HATL938808-C6
- Type: Imperial
- Cutter Diameter Decimal Inch: 0.125
- Cutter Diameter Fractional Inch: 1/8
- Cutter Diameter Metric: 3.175
- Corner Radius: 0.015 in, 0.015in
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.1
- Length of Cut Metric: 2.54
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Carbide
- Surface Treatment: AlTiN Nano Coated
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Shank Type: Reduced
- Country of Origin: US
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Application
- Item Features
Finishing Applications
- Designed to profile and finish hardened tool, die and mold steels 46RC to 68RC
- Select carbide grade for improved edge retention
- Latest generation AlTiN Nano coating offers superior hardness and heat-resistance
- Geometry includes stub flute, large rigid core diameter and eccentric relief
- Increased shank diameter to maintain strength and stiffness
- h6 shank tolerance for high precision tool holders
