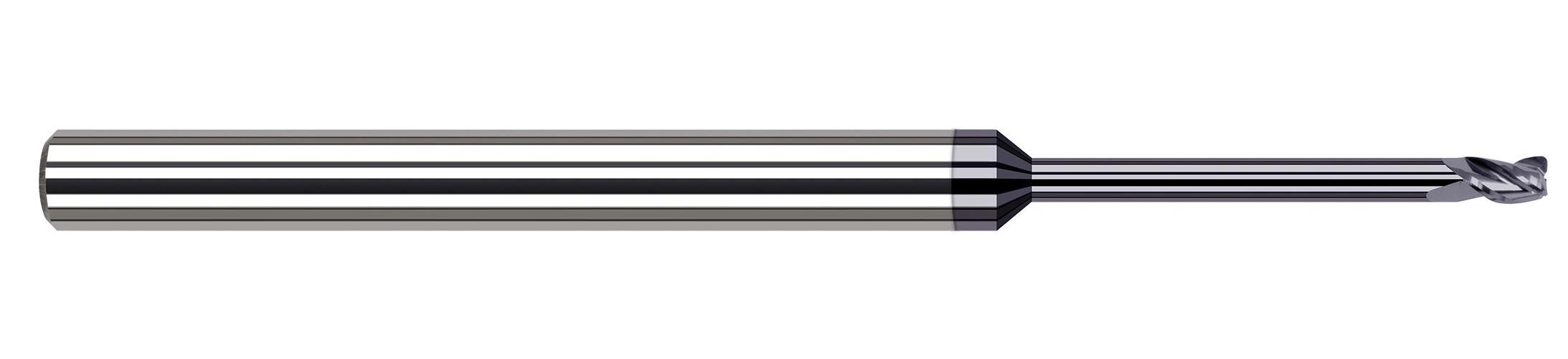

.020DIAx.004R 3FL 6xRCH VHX EX END MILL
.020DIAx.004R 3FL 6xRCH VHX EX END MILL
HATL932520-C6
932520-C6
81.10
/ EA
http://schema.org/OutOfStock
/Product/HATL932520-C6
- Type: Center Cut Stub Length Variable Helix
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.5, 0.508
- Corner Radius: 0.004 in, 0.004in
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.03
- Length of Cut Metric: 0.762
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano, C6
- Helix Angle: 34 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (1.5x)
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.0192in
- Overall Reach: 0.2in
- Reach Multiple: (10x)
- Application
- Item Features
Suitable for steels up to 45Rc
- Reduced neck diameter to avoid heeling
- Variable helix design (approx. 34) reduces chatter and harmonics and increases material removal rates
- Corner radius available for improved strength
- Latest generation coating offers superior hardness and heat resistance
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Overall Reach 0.2000 in
- Reach Multiple (10x)
