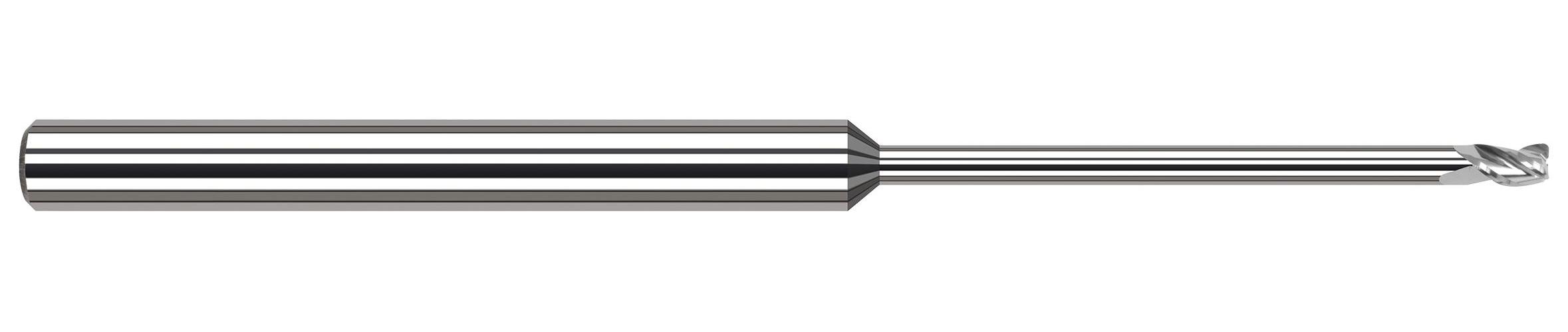

.062 D V-HELIX NF, .005 R, 15x RCH, 3FL

.062 D V-HELIX NF, .005 R, 15x RCH, 3FL

HATL886862 886862
69.10 / EA
http://schema.org/OutOfStock
.062 D V-HELIX NF, .005 R, 15x RCH, 3FL
  • Type: Center Cut Stub Length Variable Helix
  • Cutter Diameter Decimal Inch: 0.062
  • Cutter Diameter Fractional Inch: 1/16
  • Cutter Diameter Metric: 1.575
  • Corner Radius: 0.005 in, 0.005in
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.093, 0.09375
  • Length of Cut Fractional Inch: 3/32
  • Length of Cut Metric: 2.362, 2.381
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Helix Angle: 42 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.0605in
  • Overall Reach: 0.95in
  • Reach Multiple: 15X
QTY
Add to List
  • Application
  • Item Features
  • Standards
Optimized for aluminum and aluminum alloys with excellent performance in copper, brass and bronze alloys and choice for deep cavity milling
  • Reduced neck diameter to avoid heeling
  • Variable helix design (approx. 42) reduces chatter, harmonics and increases material removal rates
  • Small corner radius improves strength
  • H6 shank tolerance for high precision tool holders
  • Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Overall Reach 0.9500 in
  • Reach Multiple (15x)
