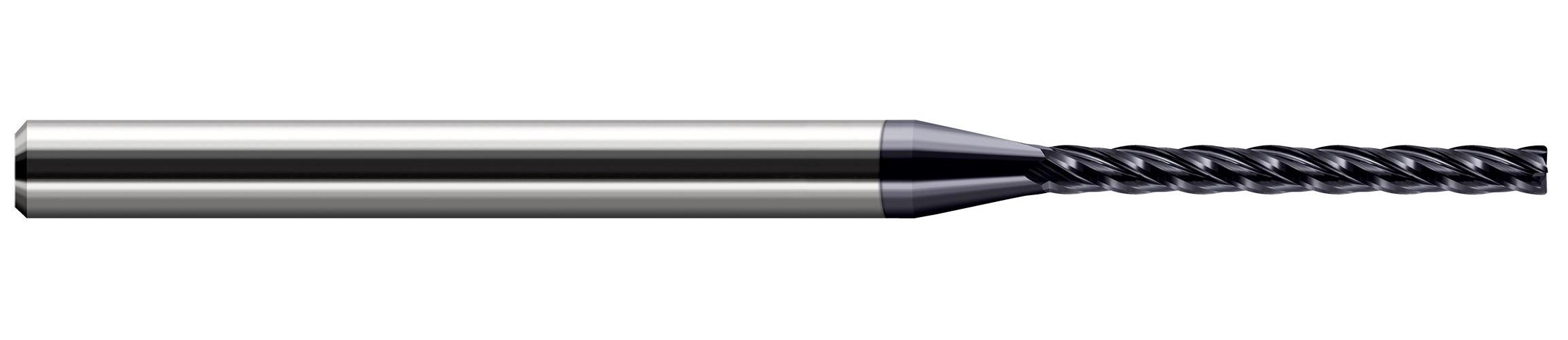

.062 Dx.005 R 10x LNG FL EM 4FL AlTiN
.062 Dx.005 R 10x LNG FL EM 4FL AlTiN
HATL870562-C3
870562-C3
57.38
/ EA
http://schema.org/OutOfStock
/Product/HATL870562-C3
- Type: Center Cut Long Length
- Cutter Diameter Decimal Inch: 0.062
- Cutter Diameter Fractional Inch: 1/16
- Cutter Diameter Metric: 1.575
- Corner Radius: 0.005 in, 0.005in
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.625
- Length of Cut Fractional Inch: 5/8
- Length of Cut Metric: 15.875
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN, C3
- Single or Double End: Single
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Center Cutting: No
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Weldon Flat: No
- Application
- Item Features
- Standards
For deep cavity and deep pocket milling applications
- Long flute and long shank design for deep cavities
- Mills deep pockets
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
PROP65: This product contains chemicals known to the State of California to cause cancer
