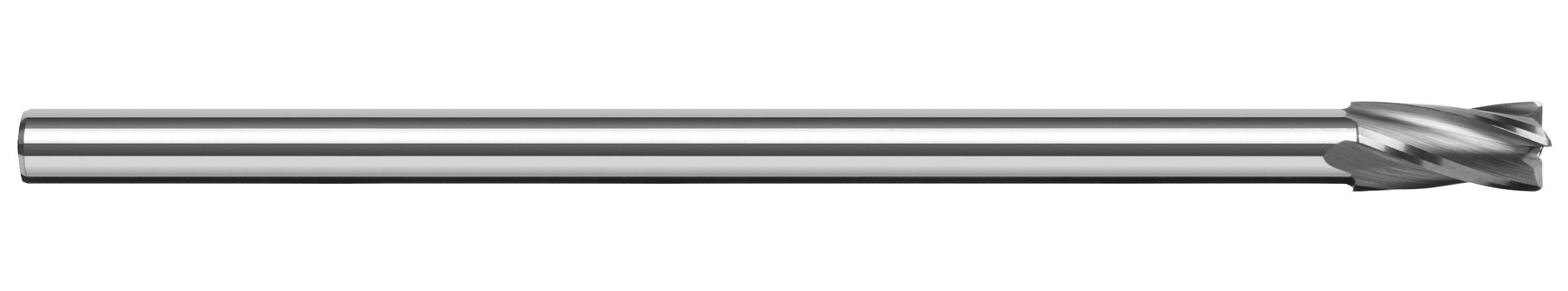

1/2 4FL .015R CARB 3/4LOC END MILL
1/2 4FL .015R CARB 3/4LOC END MILL
HATL829032
829032
0.00
/ EA
http://schema.org/OutOfStock
/Product/HATL829032
- Type: Center Cut
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Corner Radius: 0.015in, 1/64 in
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.75
- Length of Cut Fractional Inch: 3/4
- Length of Cut Metric: 19.05
- Overall Length Decimal Inch: 6
- Overall Length Fractional Inch: 6
- Overall Length Metric: 152.4
- Material: Solid Carbide
- Surface Treatment: UNCOATED
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.4375
- Shank Diameter Fractional Inch: 7/16
- Shank Type: Reduced
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Application
- Item Features
- Standards
Perfect for chucking any depth and designed for deep cavity machining operations
- Reduced straight shank allows any chucking depth
- Solid carbide construction for maximum rigidity
- Long length design for deep cavity machining
- Corner radius for improved strength
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
