1/16" 3FL .010R 6X LRCH STUB FL CARB END MILL

1/16" 3FL .010R 6X LRCH STUB FL CARB END MILL

HATL768462 768462
62.10 / EA
http://schema.org/OutOfStock

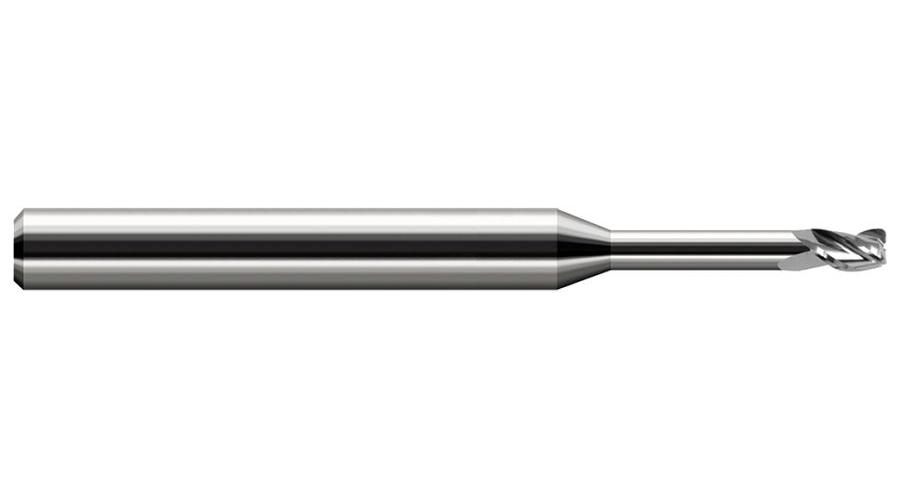

.062DIAx.010R STB FL 6xRCH END MILL
  • Type: Stub Length Long Reach
  • Cutter Diameter Decimal Inch: 0.062
  • Cutter Diameter Fractional Inch: 1/16
  • Cutter Diameter Metric: 1.575
  • Corner Radius: 0.01 in, 0.01in
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.093, 0.09375
  • Length of Cut Fractional Inch: 3/32
  • Length of Cut Metric: 2.362, 2.381
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: Un, UNCOATED
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Length of Cut Multiple: (1.5x)
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.0605in
  • Overall Reach: 0.375in
  • Reach Multiple: (6x)
QTY
Add to List
  • Item Features
  • Long length design for deep cavities, up to 8 in overall length
  • Corner radius for improved strength
  • Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Overall Reach 0.3750 in (3/8)
  • Reach Multiple (6x)
