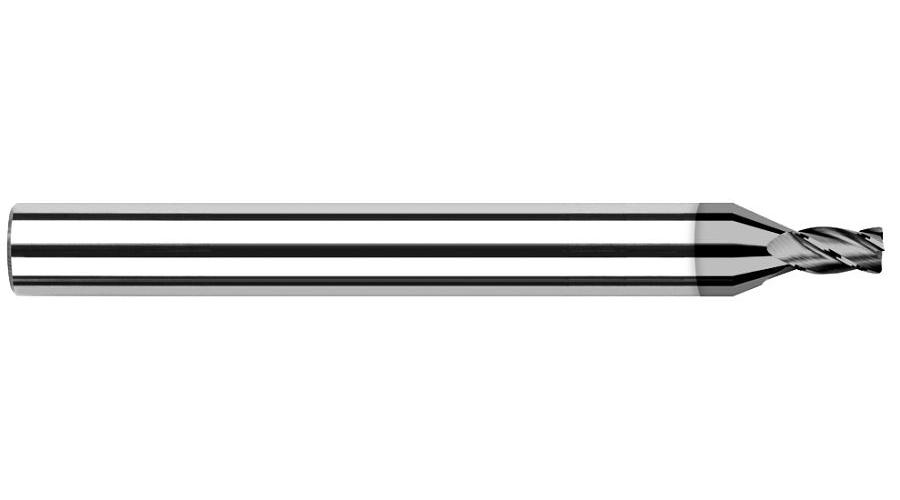

1/16" 4FL .010R .093LOC CR CARBIDE END MILL

1/16" 4FL .010R .093LOC CR CARBIDE END MILL

HATL745062 745062
146.20 / EA
http://schema.org/OutOfStock
1/16" 4FL .010R .093LOC CR CARBIDE END MILL
  • Type: Center Cut
  • Cutter Diameter Decimal Inch: 0.062
  • Cutter Diameter Fractional Inch: 1/16
  • Cutter Diameter Metric: 1.575
  • Corner Radius: 0.01 in, 0.01in
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.093, 0.09375
  • Length of Cut Fractional Inch: 3/32
  • Length of Cut Metric: 2.362, 2.381
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: C5, CVD Diamond
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Length of Cut Multiple: (1.5x)
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Ideal for machining graphite and composites, green carbide and green ceramics
  • True crystalline CVD diamond on solid carbide substrate
  • Applicable Materials are Composites, Graphite
