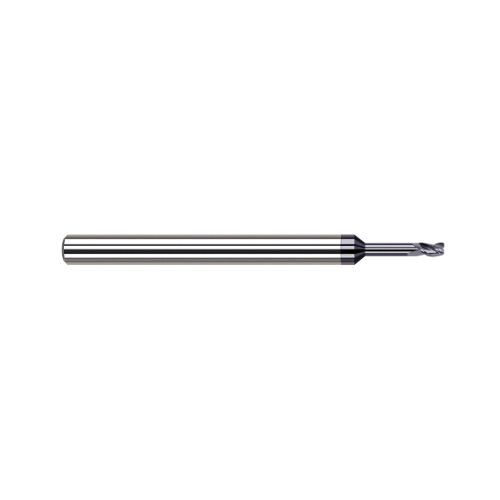

.020" 3FL .004R VAR HELIX 5X CARB END MILL
.020" 3FL .004R VAR HELIX 5X CARB END MILL
HATL64420-C6
64420-C6
68.10
/ EA
http://schema.org/OutOfStock
/Product/HATL64420-C6
- Corner Radius: 0.004 in, 0.004in
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Type: Center Cut Imperial Long Reach Stub Flute Variable Helix
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.03
- Length of Cut Metric: 0.762
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano Coated
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Reduced
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Performance Company, Harvey Tool
- Application
- Item Features
Deep Cavity Applications
- Long reach design for deep cavities
- Reduced neck diameter to avoid heeling
- Variable helix design (approximately 34 deg) reduces chatter and harmonics and increases material removal rates
- Corner radius for improved strength
- Latest generation AlTiN Nano coating offers superior hardness and heat-resistance
- h6 shank tolerance for high precision tool holders
- Suitable for steels up to 45RC
