1/8" 3FL .005R 1.5X VAR HELIX CR END MILL

1/8" 3FL .005R 1.5X VAR HELIX CR END MILL

HATL61808 61808
38.60 / EA
http://schema.org/OutOfStock

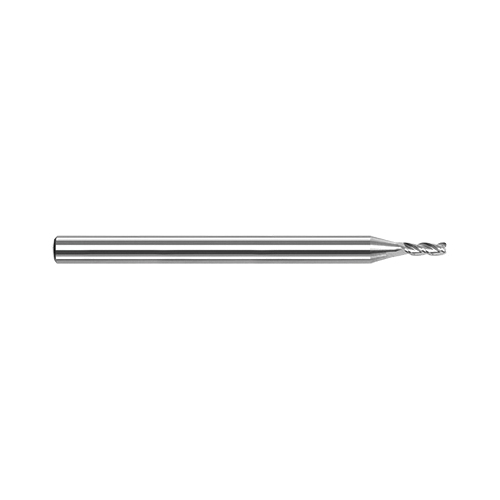

1/8 VHELIX NF 1.5x 3FL
  • Type: Center Cut Imperial Variable Helix
  • Cutter Diameter Decimal Inch: 0.125
  • Cutter Diameter Fractional Inch: 1/8
  • Cutter Diameter Metric: 3.175
  • Corner Radius: 0.005 in, 0.005in
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.187
  • Length of Cut Fractional Inch: 3/16
  • Length of Cut Metric: 4.75
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Country of Origin: US
  • Flute Type: Spiral
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Performance Company, Harvey Tool
QTY
Add to List
  • Item Features
  • Variable helix design (approximately 42 deg) reduces chatter and harmonics and increases material removal rates
  • h6 shank tolerance for high precision tool holders
