1/4" 2FL .010R 3X CR CARB UPCUT END MILL

1/4" 2FL .010R 3X CR CARB UPCUT END MILL

HATL55516 55516
67.10 / EA
http://schema.org/OutOfStock

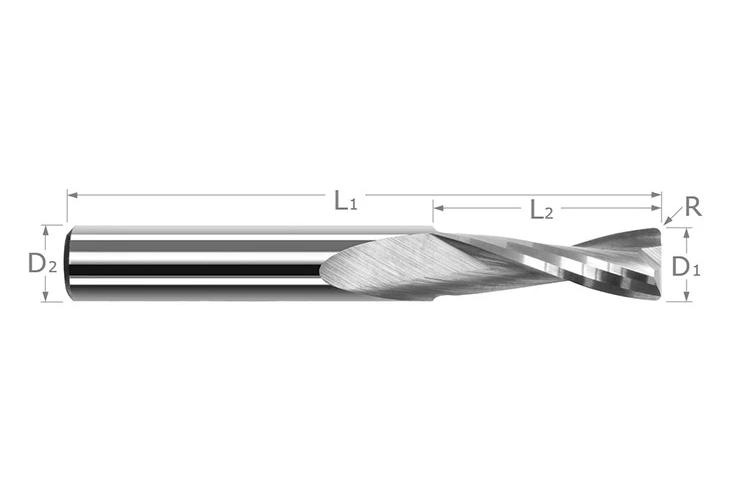

1/4" DIA x .010CR CARBIDE UPCUT END MILL
  • Corner Radius: 0.01 in, 0.01in
  • Cutter Diameter Inch: 0.25in, 1/4in
  • Type: Center Cut
  • Number of Flutes: 2
  • Length of Cut: 0.75in, 3/4 in, 3/4in
  • Overall Length: 2.5in, 2-1/2 in, 2-1/2in
  • Material: Solid Carbide
  • Surface Treatment: Un, UNCOATED
  • Helix Angle: 20 deg
  • Shank Diameter: 0.25in, 1/4 in, 1/4in
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Length of Cut Multiple: (3x)
  • Manufacturer Name: Harvey Tool
  • System of Measurement: Imperial
QTY
Add to List
  • Application
  • Item Features
  • Standards
For fiber-reinforced applications
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • Center cutting design improves plunging and ramping
  • Applicable Materials are Aluminum, Wood, Composites
PROP65: This product contains chemicals known to the State of California to cause cancer
