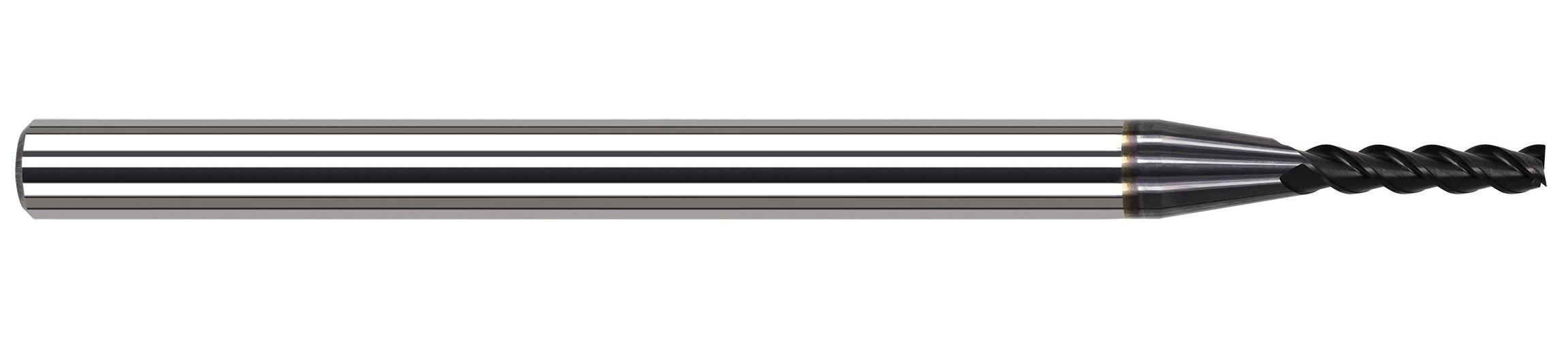

.020" 3FL .004R VAR HELIX 5X CARB END MILL
.020" 3FL .004R VAR HELIX 5X CARB END MILL
HATL53820-C3
53820-C3
58.10
/ EA
http://schema.org/OutOfStock
/Product/HATL53820-C3
- Corner Radius: 0.004 in, 0.004in
- Cutter Diameter Decimal Inch: 0.02
- Cutter Diameter Metric: 0.508
- Type: Center Cut Variable Helix
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.1
- Length of Cut Metric: 2.54
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN, C3
- Helix Angle: 37 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Application
- Item Features
Optimized for readily machinable medium alloy steels, stainless steels and tool steels
- Variable helix design reduces chatter and harmonics, and increases material removal rates
- Coating improves lubricity and heat resistance
- H6 shank tolerance for shrink fit holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel
