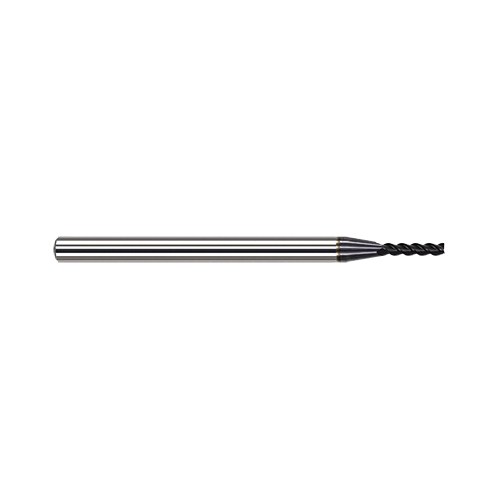

.020" 3FL .004R VAR HELIX 5X CARB END MILL

.020" 3FL .004R VAR HELIX 5X CARB END MILL

HATL53620-C6 53620-C6
59.70 / EA
http://schema.org/OutOfStock
.020 V-HELIX EX 5xLoc
  • Corner Radius: 0.004 in, 0.004in
  • Cutter Diameter Decimal Inch: 0.02
  • Cutter Diameter Metric: 0.508
  • Type: Center Cut Imperial Variable Helix
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.1
  • Length of Cut Metric: 2.54
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: AlTiN Nano Coated
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Country of Origin: US
  • Flute Type: Spiral
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Performance Company, Harvey Tool
QTY
Add to List
  • Item Features
  • Variable helix design (approximately 34 deg) reduces chatter and harmonics and increases material removal rates
  • Latest generation AlTiN Nano coating offers superior hardness and heat-resistance
  • h6 shank tolerance for high precision tool holders
  • Suitable for steels up to 45RC
