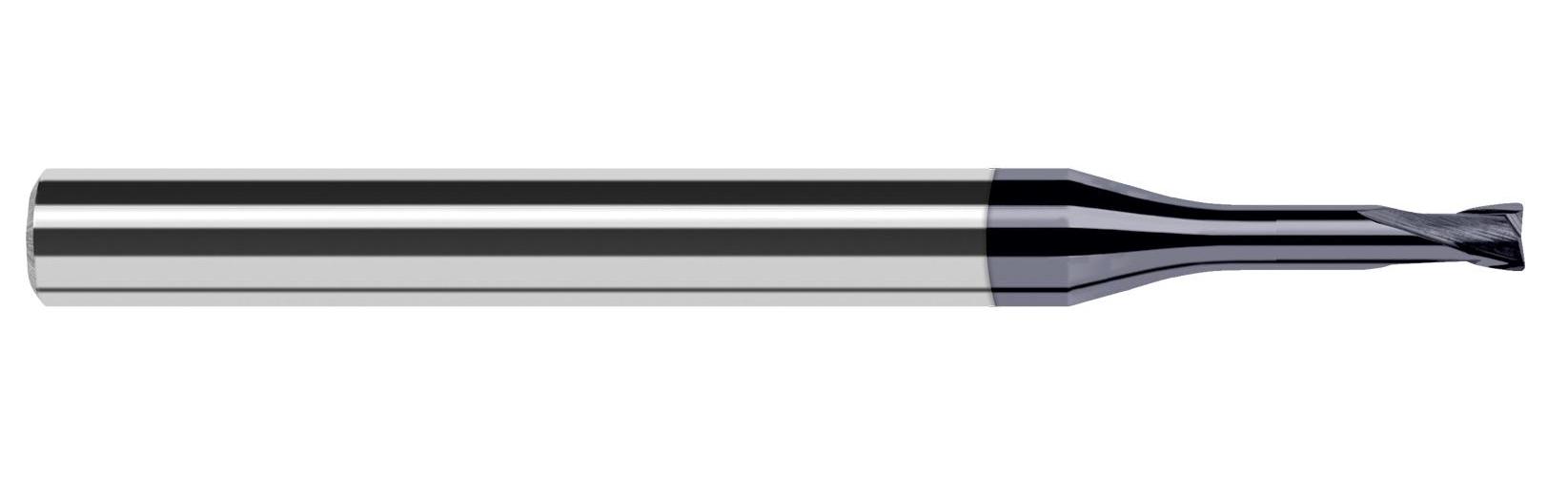

.010" 2FL .002CR .008"LOC CARB END MILL

.010" 2FL .002CR .008"LOC CARB END MILL

HATL40210-C6 40210-C6
108.40 / EA
http://schema.org/OutOfStock
.010 CRAD 1.5x RCH HARD MILLING END MILL
  • Corner Radius: 0.002 in, 0.002in
  • Cutter Diameter Inch: 0.01in
  • Type: Corner Radius
  • Number of Flutes: 2
  • Length of Cut: 0.008 in, 0.008in
  • Overall Length: 2.5in, 2-1/2 in
  • Material: Solid Carbide
  • Surface Treatment: AlTiN Nano, C6
  • Helix Angle: 20 deg
  • Shank Diameter: 0.25in, 1/4 in
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Included Angle: 60°
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.009in
  • Overall Reach: 0.015in
  • Reach Multiple: 1.5X
QTY
Add to List
  • Includes
  • Item Features
  • Standards
Tooling ground
  • Designed to profile and finish hardened tool, die, and mold steels 46Rc to 68Rc
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • Geometry includes stub flute, large rigid core diameter, and eccentric relief
  • Increased shank diameter to maintain strength and stiffness
  • Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
  • Overall Reach 0.0150 in (1/64)
  • Reach Multiple (1.5x)
PROP65: This product contains chemicals known to the State of California to cause cancer
