3/32" 3FL .005CR LR STUB FL CARB END MILL

3/32" 3FL .005CR LR STUB FL CARB END MILL

HATL37193 37193
62.10 / EA
http://schema.org/OutOfStock

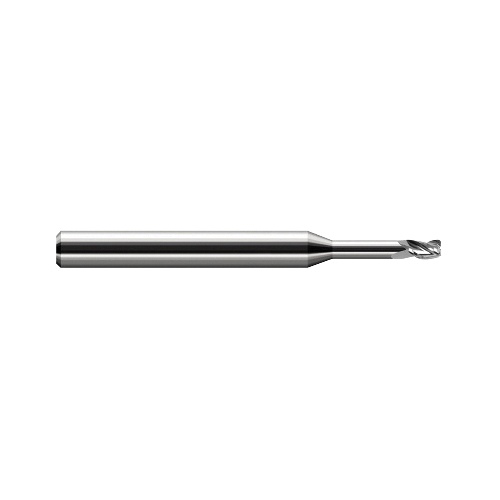

3/32 x.005R STB FL 5x RCH SC
  • Type: Imperial Long Reach Stub Length
  • Cutter Diameter Decimal Inch: 0.093
  • Cutter Diameter Metric: 2.362
  • Corner Radius: 0.005 in, 0.005in
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 0.139
  • Length of Cut Metric: 3.531
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Reduced
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Application
  • Item Features
Deep Cavity Applications
  • Long length design for deep cavities, up to 8 in overall length
  • Corner radius for improved strength
