1/2" .030CR 4FL XLONG MINI CARB END MILL

1/2" .030CR 4FL XLONG MINI CARB END MILL

HATL24032 24032
333.30 / EA
http://schema.org/OutOfStock

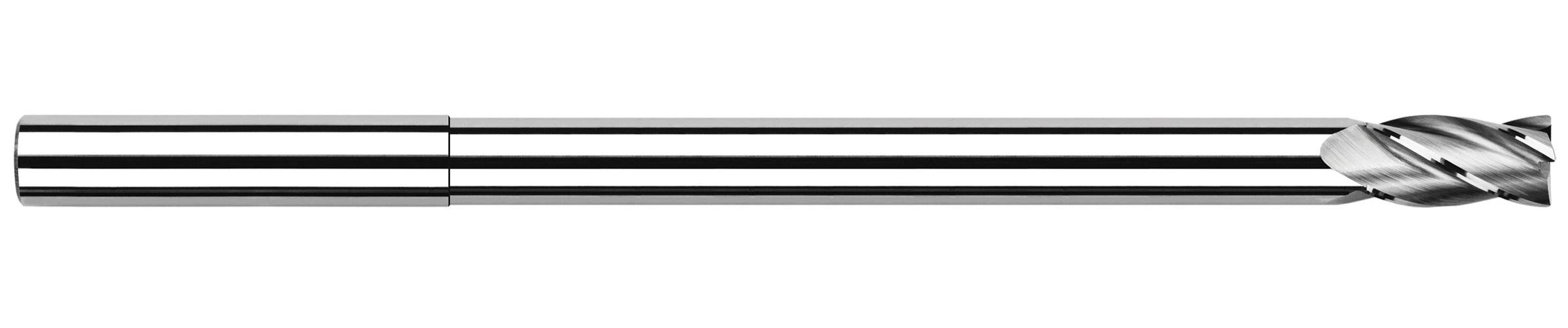

1/2 x3/4 x8".030cr 4FL
  • Type: Center Cut
  • Cutter Diameter Decimal Inch: 0.5
  • Cutter Diameter Fractional Inch: 1/2
  • Cutter Diameter Metric: 12.7
  • Corner Radius: 0.03 in, 0.03in
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.75
  • Length of Cut Fractional Inch: 3/4
  • Length of Cut Metric: 19.05
  • Overall Length Decimal Inch: 8
  • Overall Length Fractional Inch: 8
  • Overall Length Metric: 203.2
  • Material: Solid Carbide
  • Surface Treatment: UNCOATED
  • Helix Angle: 30 deg
  • Shank Diameter Decimal Inch: 0.5
  • Shank Diameter Fractional Inch: 1/2
  • Shank Type: Cylindrical
  • Country of Origin: US
  • Flute Type: Upcut
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
  • Neck Diameter: 0.475in
  • Overall Reach: 5.75in
  • Reach Multiple: 11.5X
QTY
Add to List
  • Item Features
  • Standards
  • Longest overall length carbide end mill
  • Extended Reach
  • Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Wood, Composites
  • Overall Reach 5.7500 in
